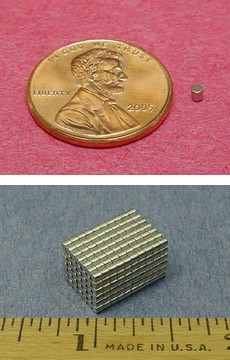

Home » NEODYMIUM CYLINDER MAGNETS   D11-N52 Dimensions: 1/16" dia. x 1/16" thick Tolerances: ±0.002" x ±0.002" Material: NdFeB, Grade N52 Plating/Coating: Ni-Cu-Ni (Nickel) Magnetization Direction: Axial (Poles on Flat Ends) Weight: 0.000831 oz. (0.0236 g) Pull Force, Case 1: 0.12 lbs Pull Force, Case 2: 0.12 lbs Surface Field: 6619 Gauss Max Operating Temp: 176ºF (80ºC) Brmax: 14,800 Gauss BHmax: 52 MGOe These small, N52 grade cylinders are often used as triggering devices for Hall Effect sensors. They are also useful for small arts & crafts applications and tiny fridge magnets. This size is also available in grade N48 as part number D11 and in High Temp grade N42 as part number D11SH.   D11-N52: 10 for $1.00 25 for $2.50 50 for $5.00 100 for $9.00 250 for $22.50 500 for $40.00 1000 for $80.00 2500 for $175.00 5000 for $350.00 10000 for $600.00 Quantity: « Previous | Next »
