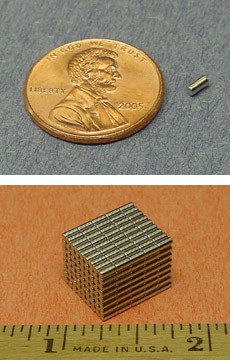

Home » NEODYMIUM CYLINDER MAGNETS   D12-N50 Dimensions: 1/16" dia. x 1/8" thick Tolerances: ±0.002" x ±0.002" Material: NdFeB, Grade N50 Plating/Coating: Ni-Cu-Ni (Nickel) Magnetization Direction: Axial (Poles on Flat Ends) Weight: 0.00166 oz. (0.0471 g) Pull Force, Case 1: 0.14 lbs Pull Force, Case 2: 0.15 lbs Surface Field: 7034 Gauss Max Operating Temp: 176ºF (80ºC) Brmax: 14,500 Gauss BHmax: 50 MGOe Tiny cylinders in the popular 2-to-1 length-to-diameter ratio. Useful for Hall Effect and many other applications.   D12-N50: 10 for $1.00 25 for $2.50 50 for $5.00 100 for $9.00 250 for $22.50 500 for $40.00 1000 for $80.00 2500 for $175.00 5000 for $350.00 10000 for $600.00 Quantity: « Previous | Next »
