• Dimensions: 3/4" dia. x 3/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Black Ni (Black Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.718 oz. (20.4 g)
• Pull Force, Case 1: 29.71 lbs
• Pull Force, Case 2: 44.94 lbs
• Surface Field: 5233 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

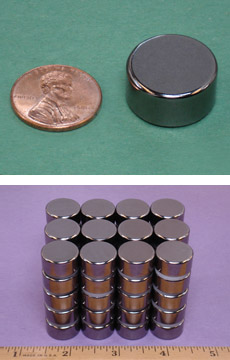

These Grade N52 neodymium discs are considerably stronger than grade N42 discs of the same size. They are plated with Black Nickel which is actually more of a dark charcoal color than black. The DC6B-N52's are incredibly strong for their size and should not be taken lightly. Proper care and safety is required when handling these powerful discs.

This size is also available in grade N42 with our standard nickel plating as part number DC6.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.
