Home » NEODYMIUM CYLINDER MAGNETS » DCY8

Description
Technical
Downloads

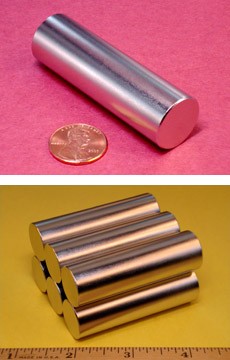

Dimensions: 3/4" dia. x 2 1/2" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 4.79 oz. (135.8 g)
Pull Force, Case 1: 39.20 lbs
Pull Force, Case 2: 39.20 lbs
Surface Field: 6527 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

This amazingly powerful size is very useful for a wide range of applications. They pack an enoromous amount of holding strength, but their shape makes them very manageable. However, be sure to use caution when working with neodymium magnets of this size.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
