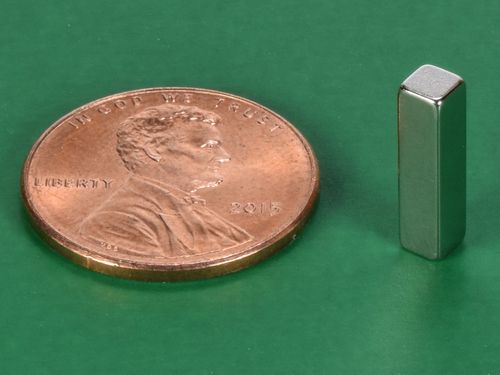

B228 - Neodymium Block Magnet - 1/8" Len x 1/8" Wid x 1/2" Thi

• Dimensions: 1/8" x 1/8" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.034 oz. (0.96 g)
• Pull Force, Case 1: 1.19 lbs
• Pull Force, Case 2: 1.21 lbs
• Surface Field: 6535 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

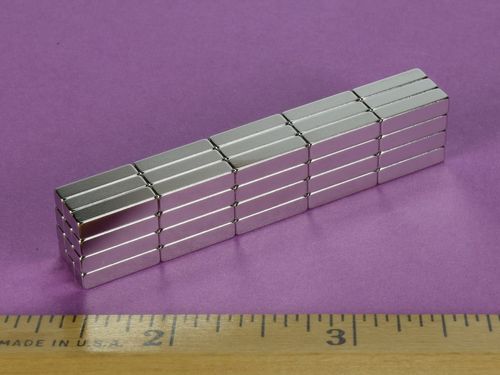

These blocks are magnetized through the 1/2" length so the poles are on the small 1/8" x 1/8" ends. They are like a "square cylinder" and are useful for a wide array of applications.
