B666 - Neodymium Block Magnet - 3/8 " Len x 3/8 " Wid x 3/8 " Thi

• Dimensions: 3/8" x 3/8" x 3/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.229 oz. (6.48 g)
• Pull Force, Case 1: 10.07 lbs
• Pull Force, Case 2: 11.87 lbs
• Surface Field: 5754 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

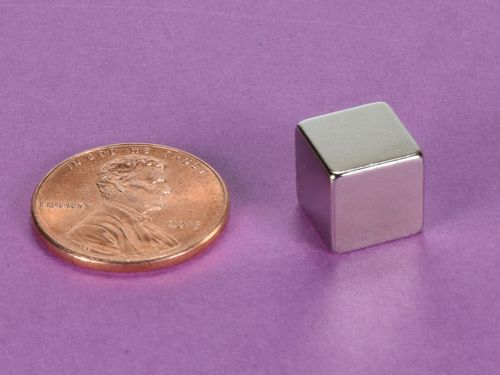

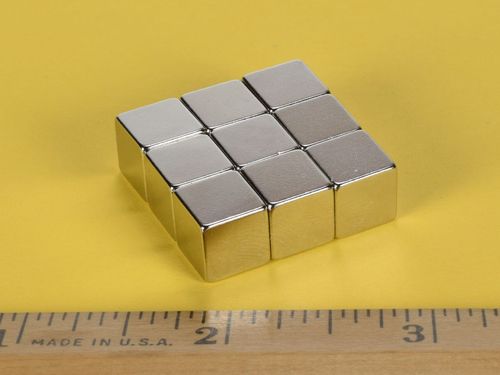

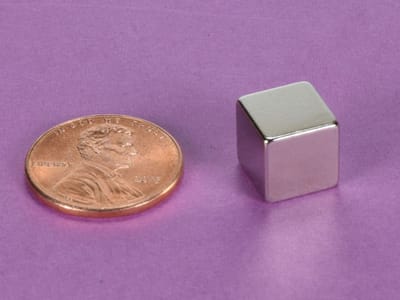

These 3/8" Neodymium Cube Magnets are deceptively strong. While they are powerful and can pinch, their power can be quite useful. They are a great size for a bulletin board or your fridge, as just one of them will hold a stack of papers firmly in place, and they are large enough to grab and easily move. Strong and sturdy!

This size is also available in Grade N52 as part number B666-N52 and with a 3/32" hole through the center as part number B666-03PE.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
