B884DCS - Neodymium Countersunk Block Magnet - 1/2" Len x 1/2" Wid x 1/4" Thi

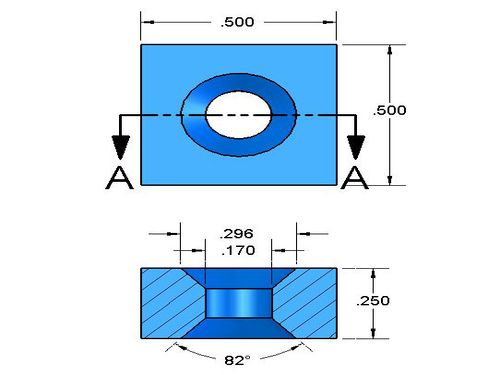

• Dimensions: 1/2" x 1/2" x 1/4" thick w/ hole to accept a #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.233 oz. (6.61 g)
• Pull Force, Case 1: 9.53 lbs
• Pull Force, Case 2: 15.54 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

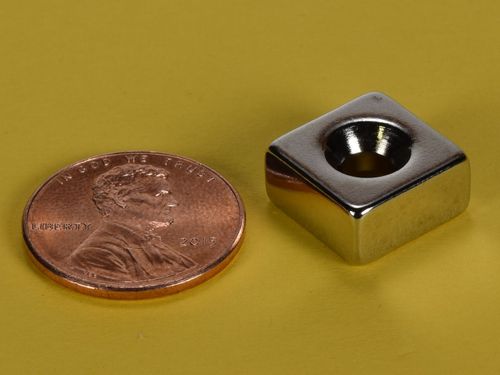

The B884DCS is one of the smaller items in our unique line of countersunk magnets. This tough little block is countersunk on both sides, making it reversible. The double countersunk hole allows for fastening to surfaces where magnets just won't stick! Great for woodworking, art projects, manufacturing and many other custom applications.

See our full line of Countersunk Magnets.

This size is also available without the countersunk hole as part number B884.
