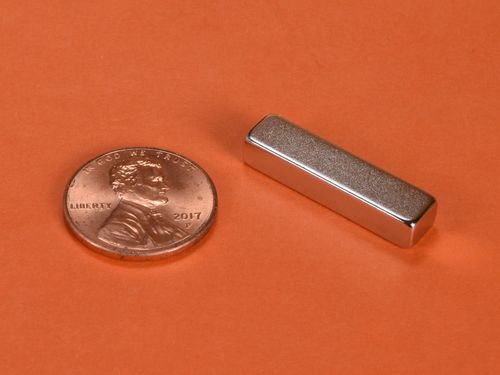

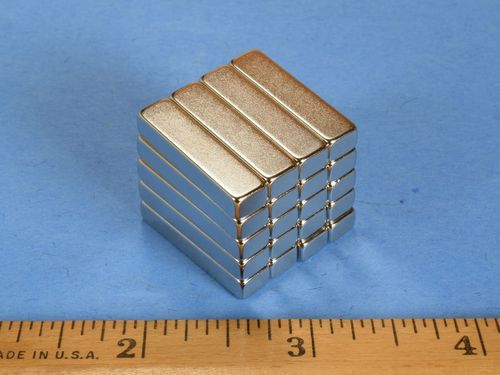

BX043 - Neodymium Block Magnet - 1" Len x 1/4" Wid x 3/16" Thi

bx043-neodymium-block-magnet

bx043-neodymium-block-magnet--thumbnail-1

bx043-neodymium-block-magnet--thumbnail-2

$1.69

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.69	1-9
$1.65	10-24	2%
$1.61	25-49	5%
$1.58	50-99	7%
$1.54	100-249	9%
$1.50	250-499	11%
$1.46	500-999	14%
$1.43	1000-2499	15%
$1.39	2500-4999	18%
$1.35	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1" x 1/4" x 3/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.203 oz. (5.75 g)
Pull Force, Case 1: 10.99 lbs
Pull Force, Case 2: 21.34 lbs
Surface Field: 4305 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The BX043 blocks are unique in size and strong. They can be used for a wide range of applications. Poles are located on the larger, rectangular surfaces.
