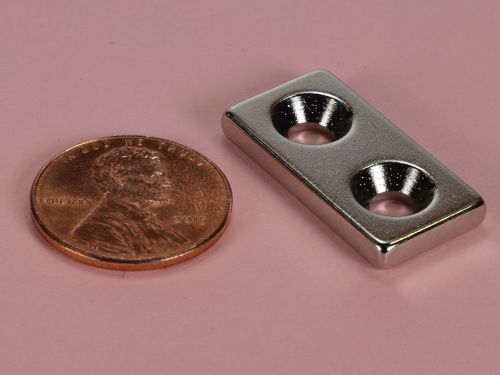

BX082CS-N - Neodymium Countersunk Block Magnet - 1" Len x 1/2" Wid x 1/8" Thi

• Dimensions: 1" x 1/2" x 1/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.233 oz. (6.61 g)
• Pull Force, Case 1: 9.19 lbs
• Pull Force, Case 2: 32.45 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Here we offer the popular size of 1" x 1/2" in 1/8" thickness with holes for two #6 flathead screws to allow for easy fastening. The BX082CS-N is magnetized with the north pole on the countersink side.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers.

NOTE: As of May 2014, this product accepts #6 screws.
