BX084DCS-N52 - Neodymium Countersunk Block Magnet - 1" Len x 1/2" Wid x 1/4" Thi

• Dimensions: 1" x 1/2" x 1/4" thick w/ holes to accept a #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.521 oz. (14.8 g)
• Pull Force, Case 1: 21.84 lbs
• Pull Force, Case 2: 43.00 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

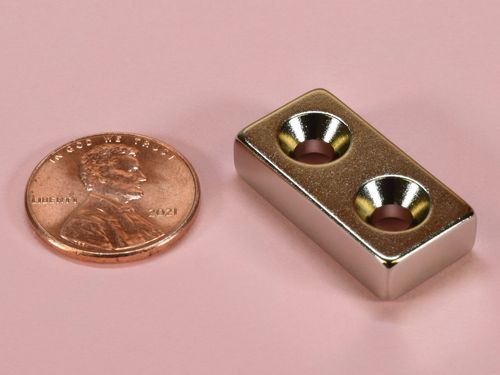

The BX084DCS-N52 is one another magnet in our unique line of countersunk magnets, in the strong N52 grade. This rectangular block is countersunk on both sides, making it reversible. The double countersunk holes allows for fastening to surfaces where magnets just won't stick! Great for woodworking, art projects, manufacturing and many other custom applications.

See our full line of Countersunk Magnets.

This size is also available in grade N42, BX084DCS, and without the countersunk hole as part number BX084.
