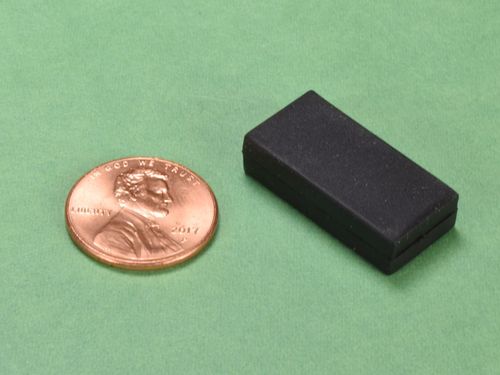

BX084TP-N52 - Neodymium Rubber Coated Block Magnet - 1" Len x 1/2" Wid x 1/4" Thi

• Dimensions: 1" x 1/2" x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Thermoplastic
• Magnetization Direction: Thru Thickness
• Weight: 0.381 oz. (10.8 g)
• Pull Force, Case 1: 9.94 lbs
• Pull Force, Case 2: 21.23 lbs
• Surface Field: 4174 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

These blocks are coated with a layer of black thermoplastic. This coating makes these magnets very water resistant and virtually indestructible. They can be slammed together with little threat of damage to the magnets. The rubber-like coating is grippy, which is great when sliding is a problem, like we describe in our Leverage & Friction article.

The dimensions of these magnets are the outer dimensions of the thermoplastic coating.
