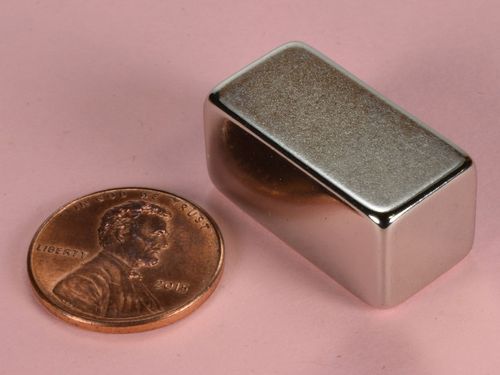

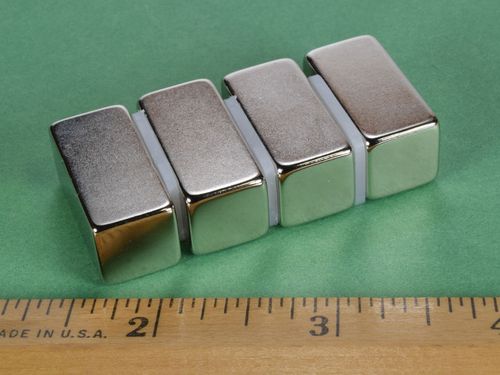

BX088SH - Neodymium High Temp Block Magnet - 1" Len x 1/2" Wid x 1/2" Thi

• Dimensions: 1" x 1/2" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42SH
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 1.08 oz. (30.7 g)
• Pull Force, Case 1: 31.01 lbs
• Pull Force, Case 2: 40.46 lbs
• Surface Field: 5248 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The powerful BX088SH blocks are made with grade N42SH (SH = Super High Temperature) material. The SH material means that the magnets can be heated to 300° F without any permanent loss of magnetic strength, unlike standard neodymium magnets that begin to lose strength at 175° F. Suitable for many high temperature applications.

This size is also available in grade N42, with 2 countersunk holes, as part number BX088DCS and in grade N52 as part number BX088-N52.
