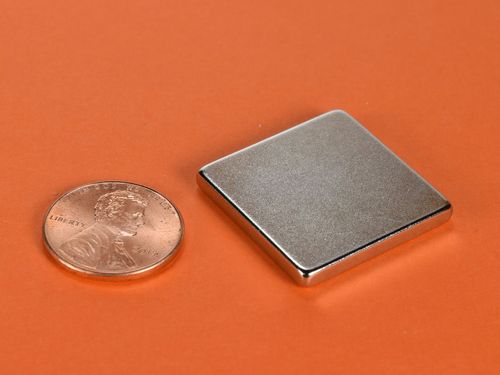

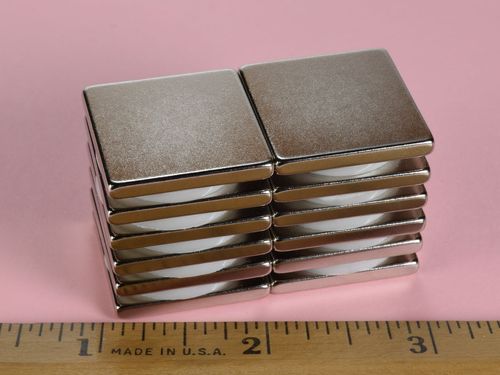

BX0X02 - Neodymium Block Magnet - 1" Len x 1" Wid x 1/8" Thi

• Dimensions: 1" x 1" x 1/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.542 oz. (15.4 g)
• Pull Force, Case 1: 14.58 lbs
• Pull Force, Case 2: 72.33 lbs
• Surface Field: 1448 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Strong and useful large plates. Great for holding metal signs objects to metal surfaces. These strong blocks should be handled with care as they can pinch fingers and will break if they are allowed to slam together.

This size is also available in grade N52 as part number BX0X02-N52.
