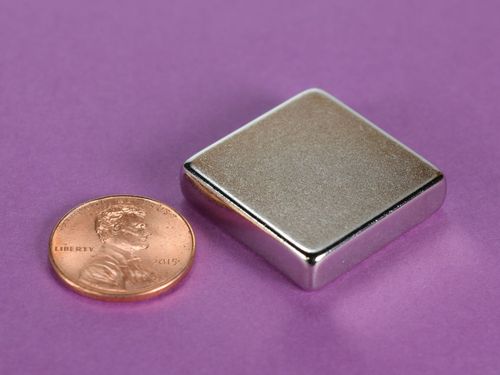

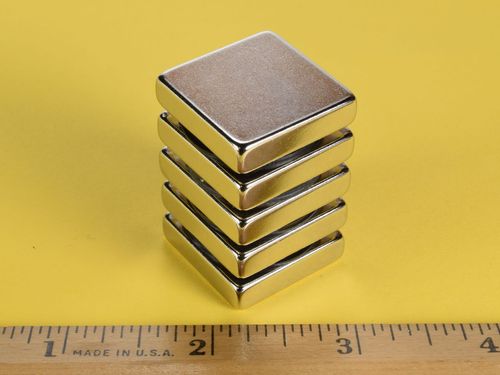

BX0X04 - Neodymium Block Magnet - 1" Len x 1" Wid x 1/4" Thi

• Dimensions: 1" x 1" x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 1.08 oz. (30.73 g)
• Pull Force, Case 1: 30.02 lbs
• Pull Force, Case 2: 73.35 lbs
• Surface Field: 2704 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The BX0X04 blocks are incredibly powerful and will pinch if they are not handled with proper care. This is a great choice for heavier holding applications.
