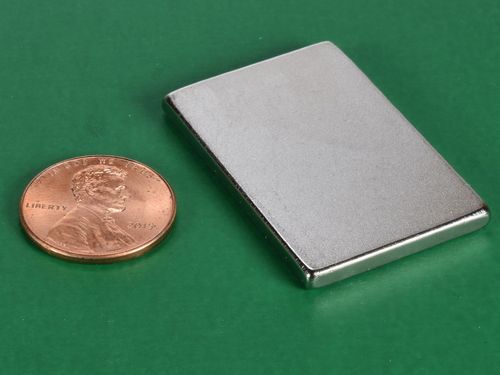

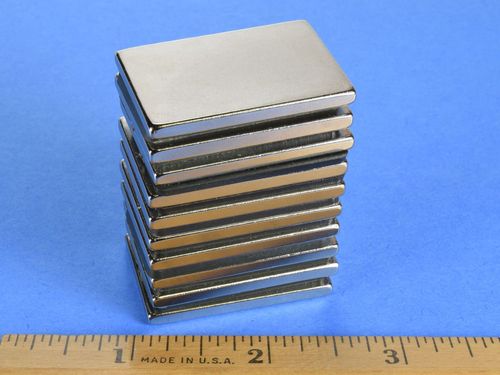

BX8X02 - Neodymium Block Magnet - 1 1/2" Len x 1" Wid x 1/8" Thi

• Dimensions: 1 1/2" x 1" x 1/8" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.813 oz. (23 g)
• Pull Force, Case 1: 18.33 lbs
• Pull Force, Case 2: 103.5 lbs
• Surface Field: 1237 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The BX8X02 is a thin block with lots of power. This 1/8" thick magnet is deceptively strong for it's size. Great surface area for holding in a thin form factor.
