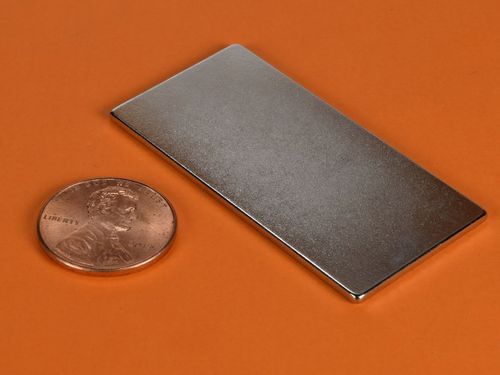

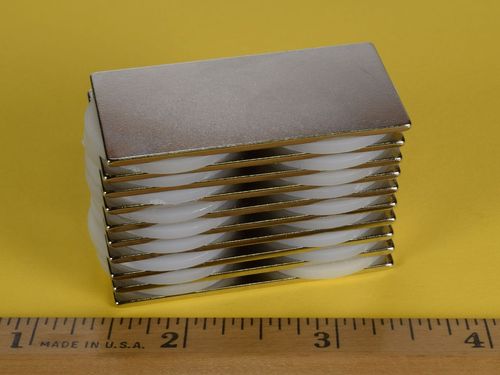

BY0X01 - Neodymium Block Magnet - 2" Len x 1" Wid x 1/16" Thi

• Dimensions: 2" x 1" x 1/16" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.542oz. (15.37 g)
• Pull Force, Case 1: 7.75 lbs
• Pull Force, Case 2: 125.3 lbs
• Surface Field: 584 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Lean and mean. That's the BY0X01. At 2" long and 1/16" thick, this is one strong magnet to be sure. It's thin form makes it relatively easy to work with. But don't let that fool you. This powerful magnet demands respect!
