BY0X08DCS - Neodymium Countersunk Block Magnet - 2" Len x 1" Wid x 1/2" Thi

• Dimensions: 2" x 1" x 1/2" thick w/ holes to accept #8 screws
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 4.10 oz. (116.16 g)
• Pull Force, Case 1: 73.98 lbs
• Pull Force, Case 2: 130.4 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

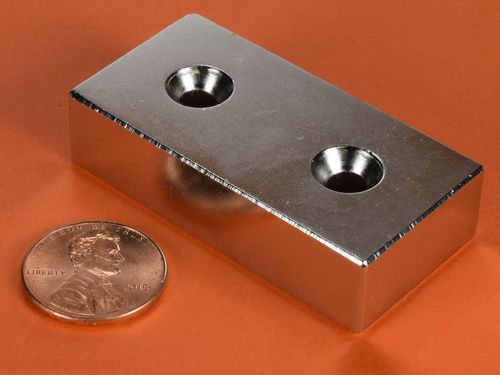

The BY0X08DCS is a very powerful, 2" long magnet with nearly limitless possibilities. Two double countersunk holes on either side make this strong block perfect for attaching to wood, aluminum, stainless steel or plastic surfaces. The countersunk holes are the same on the North and South side of this strong block, making it reversible. Great for applications that may not have otherwise been able to harness the incredible strength of Neodymium Magnets!

See our full line of Countersunk Magnets.

Also available in this size: BY0X08DCSPC-BLK (Grade N42, Double Countersunk, Black plastic coated) and BY0X08 (Grade N42, Nickel Plated, no holes) BY0X08TP-N52 (Grade N52, Black rubber coated, no holes), BY0X08-N52 (Grade N52, Nickel Plated, no holes)
