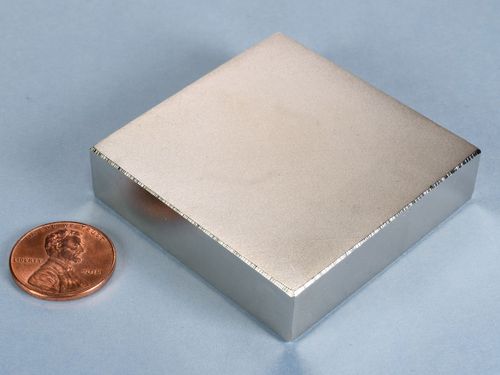

BY0Y08-N52 - Neodymium Block Magnet - 2" Len x 2" Wid x 1/2" Thi

• Dimensions: 2" x 2" x 1/2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 8.67 oz. (245.8 g)
• Pull Force, Case 1: 144.0 lbs
• Pull Force, Case 2: 307.0 lbs
• Surface Field: 3032 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

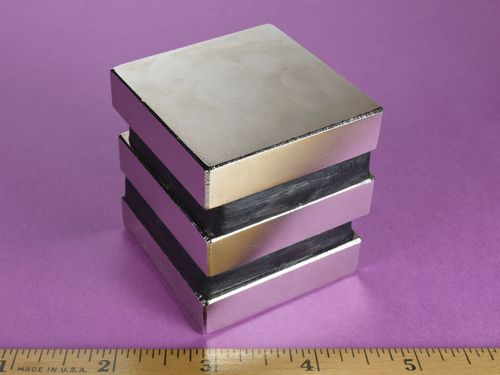

These large block magnets are extremely powerful and must be handled with caution. They can pinch very hard if you get between two of them or one and a piece of metal. They are heavy, sturdy, and unbelievably strong.

You must read and understand our Neodymium Magnet Safety Page before ordering these magnets.  You must also agree to our Terms and Conditions prior to purchasing.  THESE ARE DANGEROUS!

This size is also available in grade N42 as part number BY0Y08.
