> D052 - Neodymium Disc Magnet

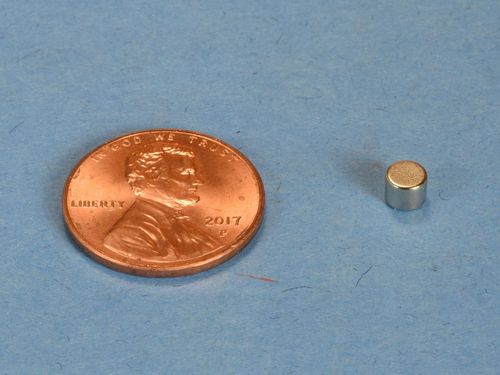

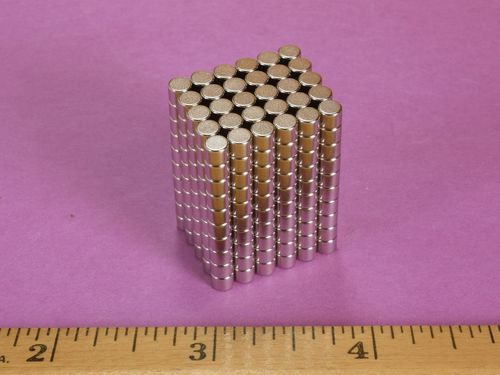

D052 - Neodymium Disc Magnet - 0.156" Dia x 1/8" Thi

d052-neodymium-disc-magnet

d052-neodymium-disc-magnet--thumbnail-1

d052-neodymium-disc-magnet--thumbnail-2

$0.20

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.20	1-249
$0.19	250-999	5%
$0.18	1000-4999	10%
$0.17	5000-24999	15%
$0.16	25000-49999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 5/32" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.01 oz. (0.28 g)
Pull Force, Case 1: 1.02 lbs
Pull Force, Case 2: 1.43 lbs
Surface Field: 5597 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Our D052 cylinder magnets are an interesting size. The diameter is right around 4mm. Very strong, yet small enough to handle with ease. Great for arts and crafts, fridge magnets, etc. A very versatile size.
