D16 - Neodymium Cylinder Magnet - 1/16" Dia x 3/8 " Thi

• Dimensions: 1/16" dia. x 3/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.00499 oz. (0.141 g)
• Pull Force, Case 1: 0.19 lbs
• Pull Force, Case 2: 0.18 lbs
• Surface Field: 6577 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

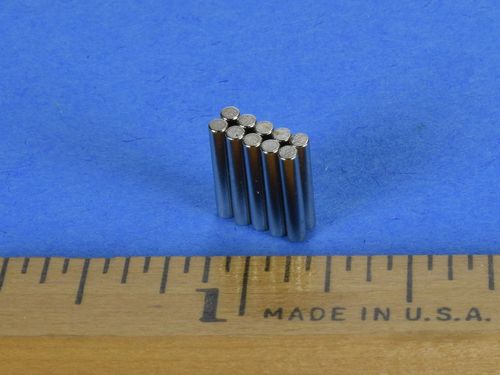

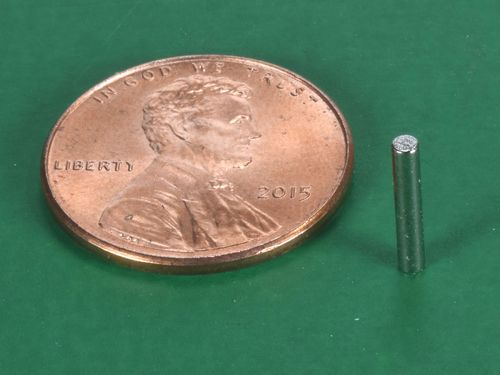

Tiny, tiny cylinders. These small cylinders are interesting to use with larger magnets. These small rods will align themselves with the magnetic field lines of larger magnets.

These magnets are sold in packs of 10.  Order a quantity of 1 and get 10 magnets.  Order a quantity of 2 and get 20 magnets.  Order a quantity of 3 and get 30...
