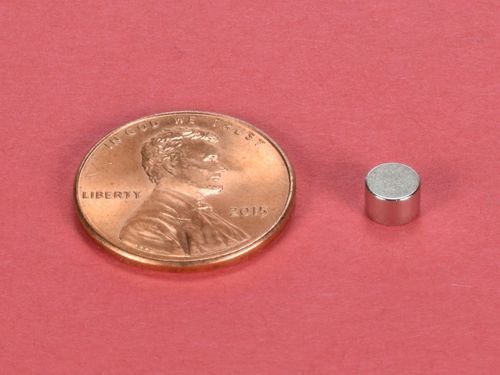

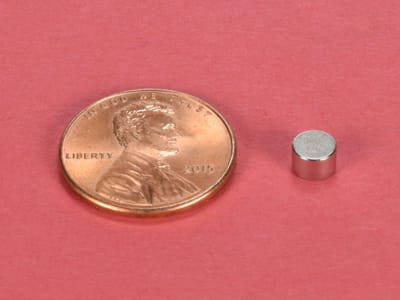

D32-N52 | 3/16" Dia x 1/8" Thi | Neodymium Disc Magnet

Price ea.	Qty	Discount
$0.29	1-49
$0.28	50-249	3%
$0.27	250-499	7%
$0.26	500-2499	10%
$0.25	2500-4999	14%
$0.24	5000-24999	17%
$0.23	25000-49999	21%
Email us for even bigger discounts on higher order quantities

Dimensions: 3/16" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0150 oz. (0.424 g)
Pull Force, Case 1: 1.70 lbs
Pull Force, Case 2: 2.49 lbs
Surface Field: 5920 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

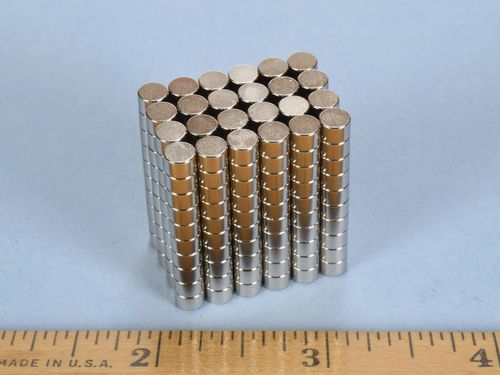

Strong little discs in grade N52 that can be used for a wide variety of applications. Each one of these disc magnets has a pull force of over 1.5 lbs. That is over 1500 times the weight of the magnet!

This size is also available in grade N42 as part number D32.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
