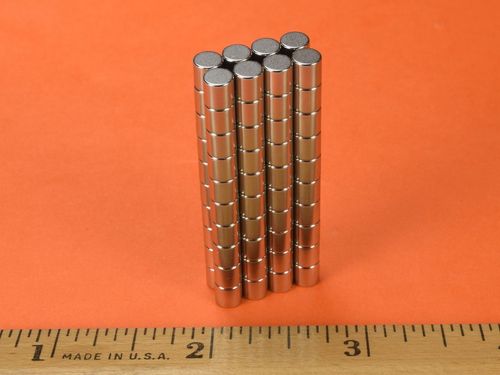

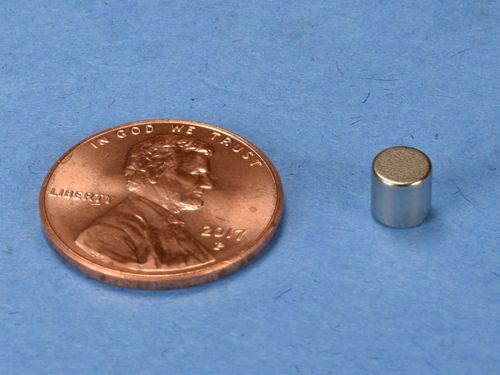

D33AH - Neodymium High Temp Cylinder Magnet - 3/16" Dia x 3/16" Thi

• Dimensions: 3/16" dia. x 3/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N35AH
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0224 oz. (0.636 g)
• Pull Force, Case 1: 1.53 lbs
• Pull Force, Case 2: 1.71 lbs
• Surface Field: 5411 Gauss
• Max Operating Temp: 428ºF (220ºC)
• Brmax: 12,100 Gauss
• BHmax: 35 MGOe

Our commonly used 3/16" x 3/16" cylinder is now available in grade N35AH.

The AH grades have a maximum operating temperature of 428ºF (220ºC), as compared to standard N grades that have a maximum operating temperature of 176ºF (80ºC).  These are great for applications where you need to place a small magnet in a high temperature environment.

This size is also available in grade N52 as part number D33-N52 , in grade N42SH as part number D33SH and in grade N42 as part number D33.
