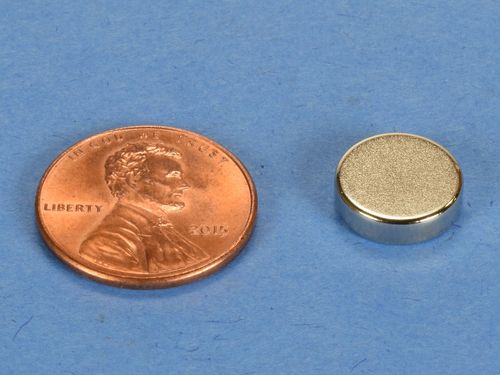

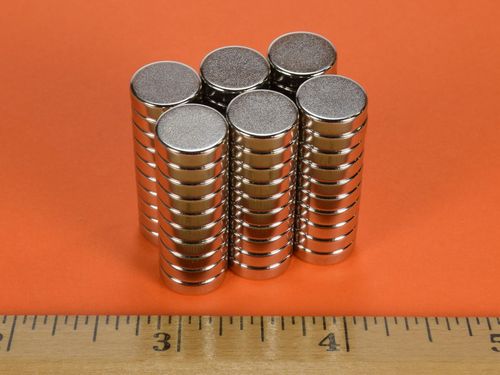

D72-N52 - Neodymium Disc Magnet - 7/16" Dia x 1/8" Thi

• Dimensions: 7/16" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0815 oz. (2.31 g)
• Pull Force, Case 1: 6.72 lbs
• Pull Force, Case 2: 15.54 lbs
• Surface Field: 3671 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

This is another very difficult to find size. These discs are surprisingly strong and sturdy. Thousands of applications.

This size is also available in grade N42 as part number D72.
