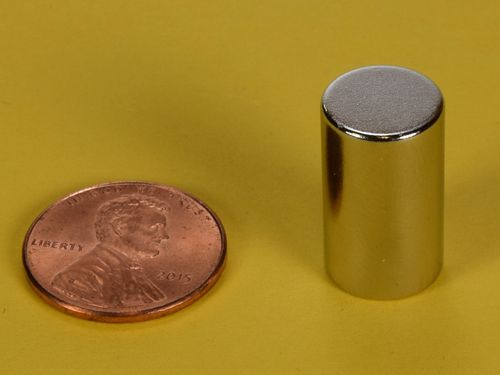

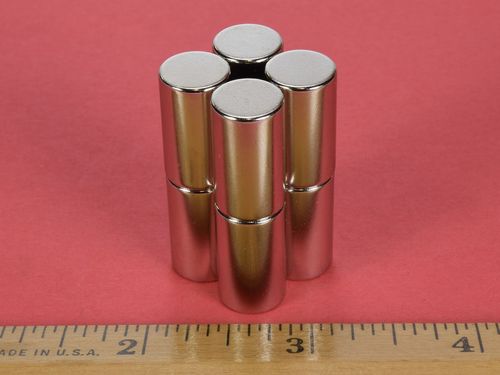

D7C | 7/16" Dia x 3/4" Thi | Neodymium Cylinder Magnet

Price ea.	Qty	Discount
$3.53	1-4
$3.45	5-9	2%
$3.37	10-24	5%
$3.30	25-49	7%
$3.22	50-99	9%
$3.14	100-249	11%
$3.06	250-499	13%
$2.99	500-999	15%
$2.91	1000-2499	18%
$2.83	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Dimensions: 7/16" dia. x 3/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.49 oz. (13.85 g)
Pull Force, Case 1: 12.12 lbs
Pull Force, Case 2: 12.80 lbs
Surface Field: 6336 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Our 7/16" diameter cylinder is now available in the increasingly popular 3/4" thickness. This mighty cylinder is excellent for magnetic whiteboards, lockers, filing cabinets or just about anywhere else you might need a powerful, all-purpose neodymium magnet.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
