D91-N52 - Neodymium Disc Magnet - 9/16" Dia x 1/16" Thi

• Dimensions: 9/16" dia. x 1/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0673 oz. (1.91 g)
• Pull Force, Case 1: 4.43 lbs
• Pull Force, Case 2: 24.08 lbs
• Surface Field: 1605 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

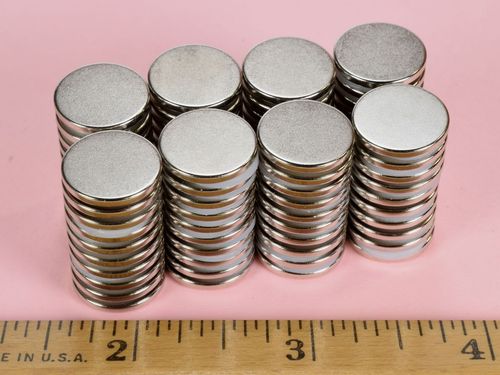

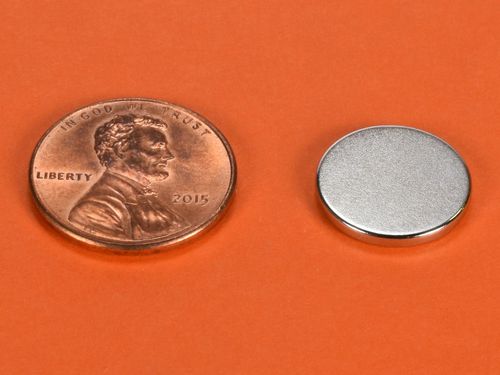

Our D91-N52 discs offer the popular 1/16" thickness combined with the hard-to-find 9/16" diameter. They are a great value for a very thin, very strong disc.

This size is also available in grade N42 as part number D91.
