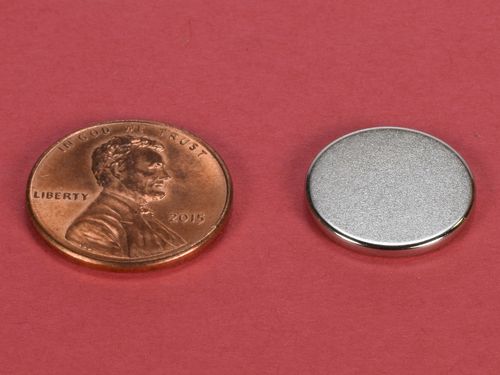

DA1-N52 - Neodymium Disc Magnet - 5/8" Dia x 1/16" Thi

• Dimensions: 5/8" dia. x 1/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0831 oz. (2.36 g)
• Pull Force, Case 1: 5.03 lbs
• Pull Force, Case 2: 30.83 lbs
• Surface Field: 1451 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

The DA1-N52 is a low-profile powerhouse. A general purpose magnet, excellent for a wide variety of applications that call for great strength in a compact size.

This size is also available in grade N42 as part number DA1.
