DA2-N52 - Neodymium Disc Magnet - 5/8" Dia x 1/8" Thi

• Dimensions: 5/8" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.166 oz. (4.71 g)
• Pull Force, Case 1: 10.15 lbs
• Pull Force, Case 2: 32.44 lbs
• Surface Field: 2748 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

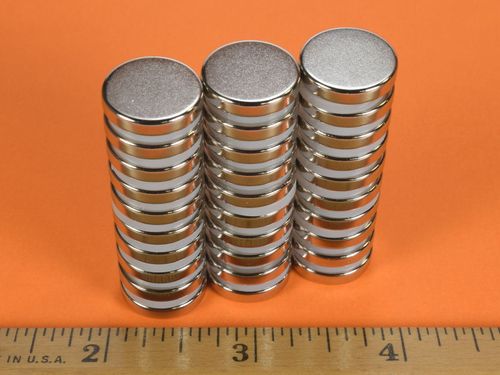

The DA2-N52 discs are amazingly strong and handy neodymium magnets. They are too strong to be treated as toys, but they are very handy if you need a 5/8" diameter disc. The size for holding heavy objects.

This size is also available in grade N42 as part number DA2.
