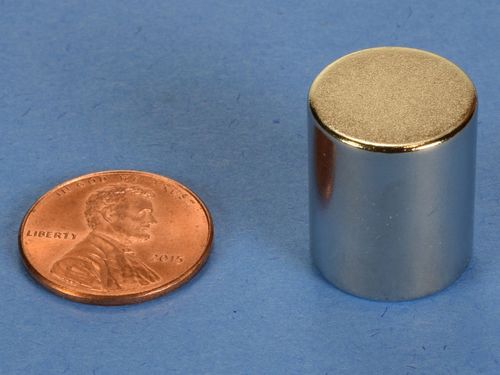

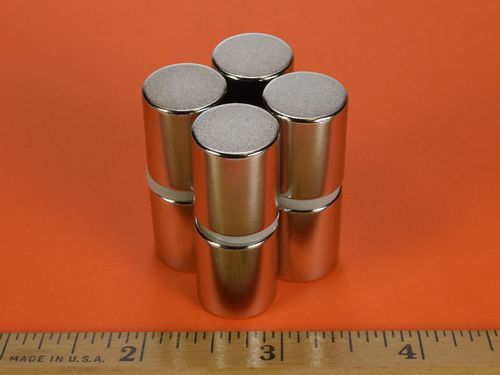

DAC - Neodymium Cylinder Magnet - 5/8" Dia x 3/4" Thi

• Dimensions: 5/8" dia. x 3/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.998 oz. (28.28 g)
• Pull Force, Case 1: 25.10 lbs
• Pull Force, Case 2: 26.70 lbs
• Surface Field: 6092 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

Our DAC cylinder magnets are very powerful and should be handled with care to avoid physical harm or damage to the magnets. This is a deceptively strong cylinder magnet.
