DC1 | 3/4" Dia x 1/16" Thi | Neodymium Disc Magnet

Price ea.	Qty	Discount
$1.24	1-9
$1.21	10-24	2%
$1.18	25-49	5%
$1.16	50-99	6%
$1.13	100-249	9%
$1.10	250-499	11%
$1.07	500-999	14%
$1.05	1000-2499	15%
$1.02	2500-4999	18%
$0.99	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Dimensions: 3/4" dia. x 1/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.120 oz. (3.39 g)
Pull Force, Case 1: 4.95 lbs
Pull Force, Case 2: 34.00 lbs
Surface Field: 1085 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

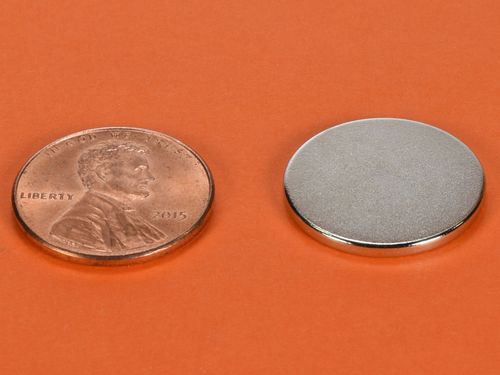

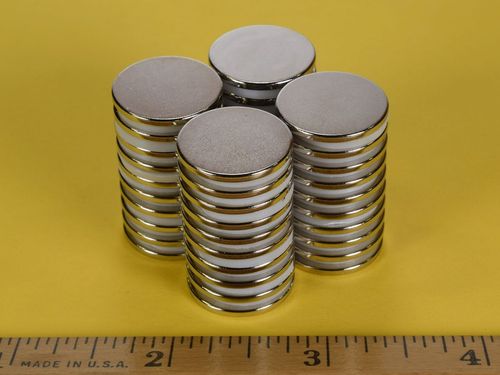

These discs are about the size of a penny. They are very thin and very strong for their size. They are shown on the left stacked together with protective spacers between them. The DC1 is a great all-purpose disc.

This size is also available in grade N52 as part number DC1-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
