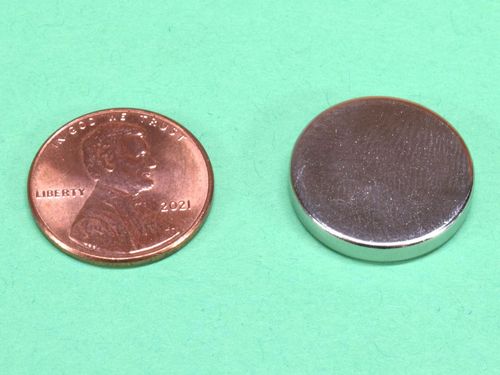

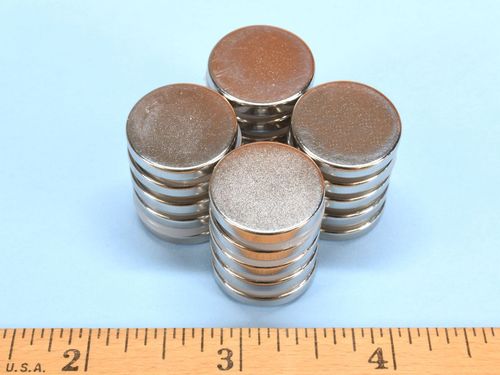

DC2-N52SH - Neodymium Disc Magnet - 3/4" Dia x 1/8" Thi

• Dimensions: 3/4" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52SH
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.239 oz. (6.79 g)
• Pull Force, Case 1: 12.08 lbs
• Pull Force, Case 2: 44.57 lbs
• Surface Field: 2340 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

This is one of our most popular sizes, now available in grade N52SH. Grade N52SH is a high strength and high temp grade, found exclusively at K&J Magnetics.

This size is also available in grade N42 as part number DC2 and in grade N42 with a Black Epoxy coating as part number DC2E and in grade N52 as part number DC2-N52.
