> DCH2 - Neodymium Disc Magnet

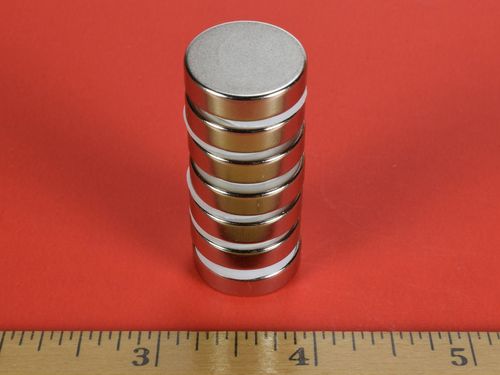

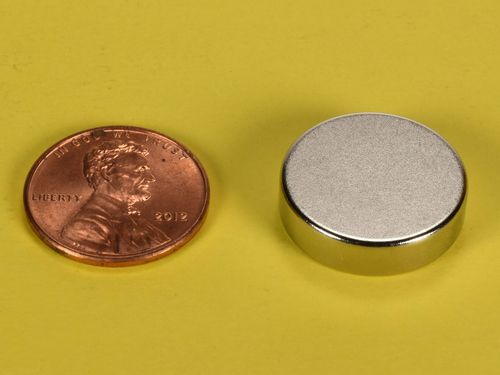

DCH2 - Neodymium Disc Magnet - 3/4" Dia x 2/10" Thi

dch2-neodymium-disc-magnet

dch2-neodymium-disc-magnet--thumbnail-1

dch2-neodymium-disc-magnet--thumbnail-2

$2.86

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.86	1-4
$2.80	5-9	2%
$2.73	10-24	5%
$2.67	25-49	7%
$2.61	50-99	9%
$2.54	100-249	11%
$2.48	250-499	13%
$2.42	500-999	15%
$2.35	1000-2499	18%
$2.29	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 3/4" dia. x 2/10" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.383 oz. (10.9 g)
Pull Force, Case 1: 16.16 lbs
Pull Force, Case 2: 36.12 lbs
Surface Field: 3106 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The DCH2 is a 3/4" diameter disc in the rare and hard-to-find 2/10" (or 1/5") thickness. When everything else is a little too big or a little too small... the DCH2 is just right!
