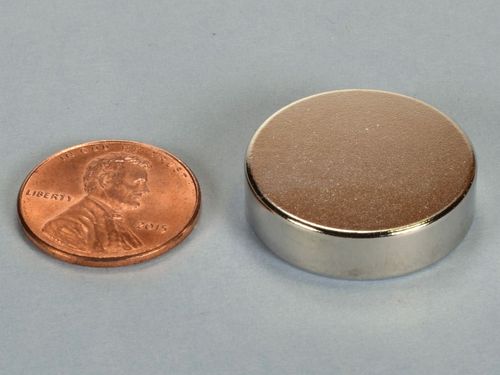

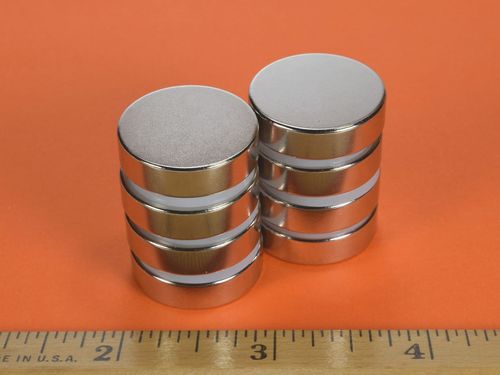

DF4 - Neodymium Disc Magnet - 15/16" Dia x 1/4" Thi

• Dimensions: 15/16" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.748 oz. (21.2 g)
• Pull Force, Case 1: 25.05 lbs
• Pull Force, Case 2: 52.95 lbs
• Surface Field: 3105 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The DF4 is a very strong disc in a very tough-to-find size. When a 1" disc is just a hair too large, you know where to turn!
