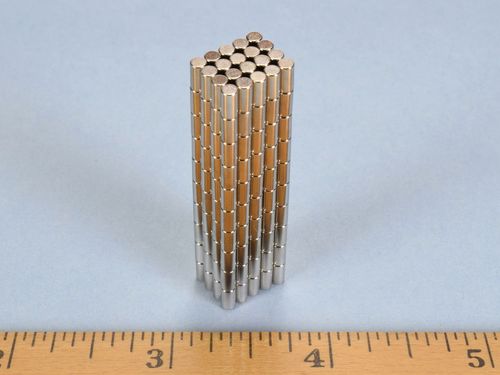

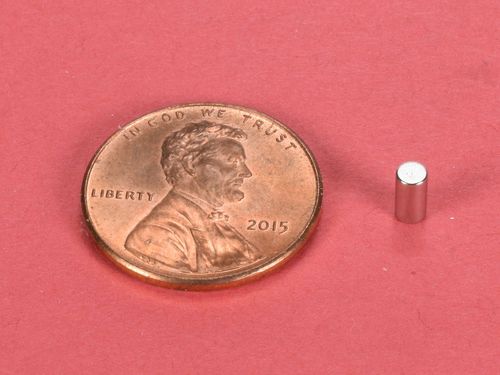

DH13 - Neodymium Cylinder Magnet - 1/10" Dia x 3/16" Thi

• Dimensions: 1/10" dia. x 3/16" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.00639 oz. (0.181 g)
• Pull Force, Case 1: 0.52 lbs
• Pull Force, Case 2: 0.58 lbs
• Surface Field: 6377 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The DH13 is one of our many new additions featuring a true 0.100" (+/-0.004") diameter. These little magnets are in high demand since they are perfectly sized for use in today's ever-shrinking electronics, sensors and various medical devices. A hard to find size at an incredible price!
