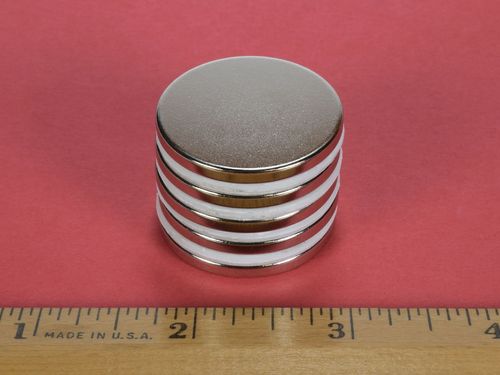

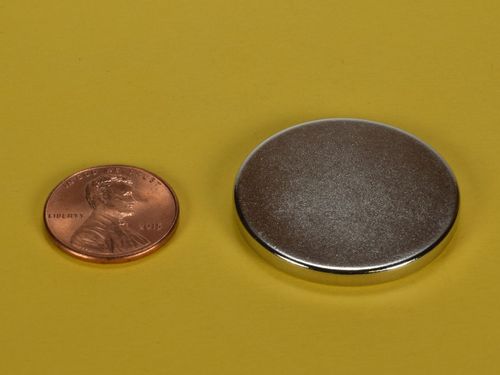

DX42 - Neodymium Disc Magnet - 1 1/4" Dia x 1/8" Thi

• Dimensions: 1 1/4" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.665 oz. (18.9 g)
• Pull Force, Case 1: 16.32 lbs
• Pull Force, Case 2: 86.77 lbs
• Surface Field: 1294 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These strong, thin discs are a great solution for a wide range of heavy holding applications. They are sturdy and powerful, so therefore, amazingly useful. The DX42 is only slightly difficult to separate by hand... but they can still pinch quite hard if not handled with care.
