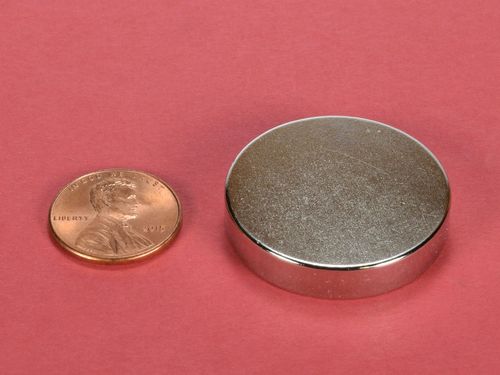

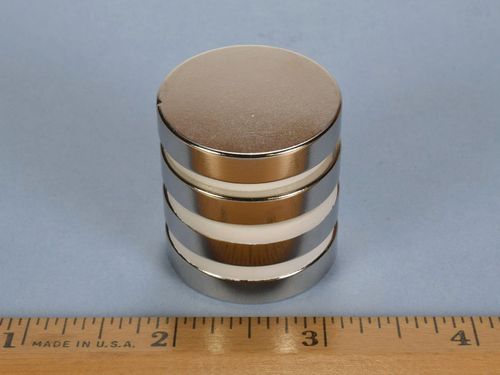

DX44 - Neodymium Disc Magnet - 1 1/4" Dia x 1/4" Thi

• Dimensions: 1 1/4" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.33 oz. (37.7 g)
• Pull Force, Case 1: 30.88 lbs
• Pull Force, Case 2: 89.40 lbs
• Surface Field: 2451 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These mighty, low-profile discs are a great option for a variety of heavy holding applications. They are sturdy and powerful, so therefore, amazingly useful. The DX44 is very tough to separate by hand... but not impossible. They may be compact but they can still pinch quite hard if handled improperly.

This size is also available in Grade N52 as part number DX44-N52.
