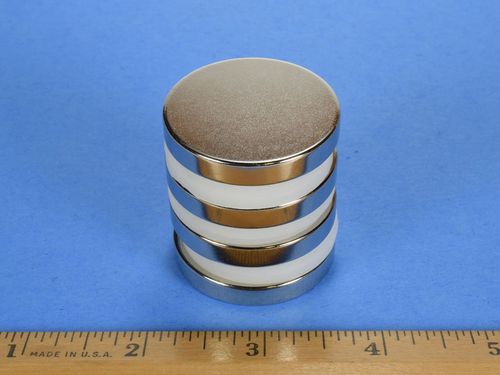

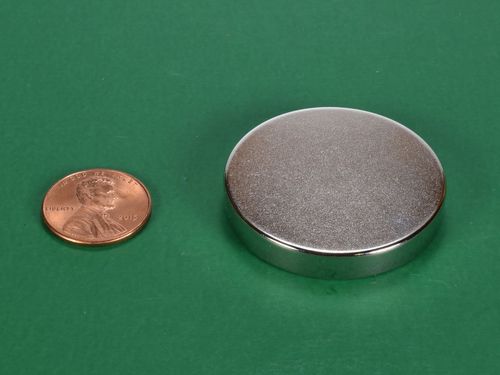

DX84 - Neodymium Disc Magnet - 1 1/2" Dia x 1/4" Thi

• Dimensions: 1 1/2" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.92 oz. (54.3 g)
• Pull Force, Case 1: 34.00 lbs
• Pull Force, Case 2: 119.4 lbs
• Surface Field: 2087 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The DX84 is an incredibly powerful disc magnet. These discs pack an incredible amount of holding power. Two of them stuck together will be *very* difficult to separate. These are definitely "adult-sized" discs. Be sure you understand the manner in which large neodymium magnets behave around metal objects and other magnets before ordering by reading our Neodymium Magnet Safety Page.

This size is also available in Grade N52 as part number DX84-N52.
