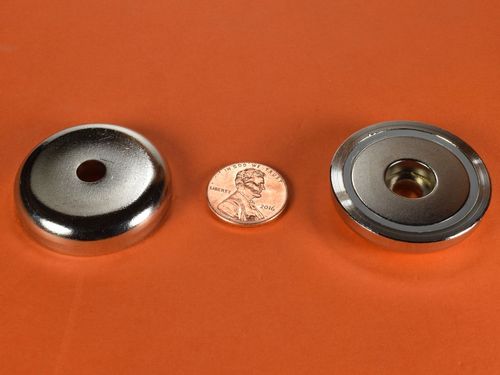

MM-B-36 - Neodymium Counterbored Mounting Magnet - 36mm Dia

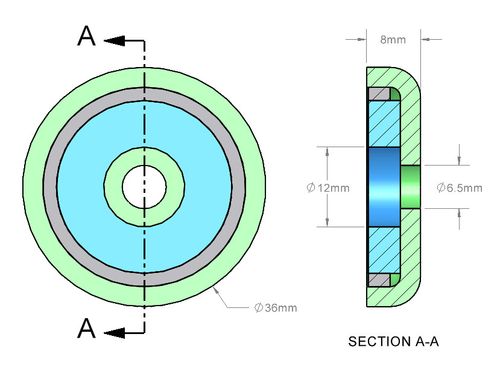

• Dimensions:
      D=36mm (1.42")
      d1=6.5mm (0.26") (Sized for M6 screw)
      d2=12mm (0.472") (Straight counterbored hole)
      h=8mm (0.31")
• Material: NdFeB, Grade N38
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 1.68 oz. (47.6 g)
• Pull Force: 59.5 lbs
• Surface Field: N/A
• Brmax: 12,600 Gauss
• BHmax: 38 MGOe

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
