MM-B-48 - Neodymium Counterbored Mounting Magnet - 48mm Dia

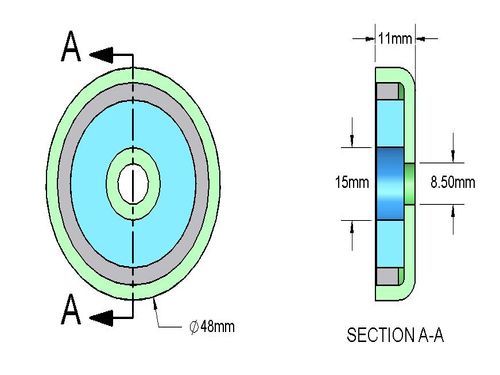

• Dimensions:
      D=48mm (1.89")
      d1=8.5mm (0.33") (Sized for M8 screw)
      d2=15mm (0.59") (Straight counterbored hole)
      h=11mm (0.43")
• Material: NdFeB, Grade N38
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 3.93 oz. (111 g)
• Pull Force: 139.0 lbs
• Surface Field: N/A
• Brmax: 12,600 Gauss
• BHmax: 38 MGOe

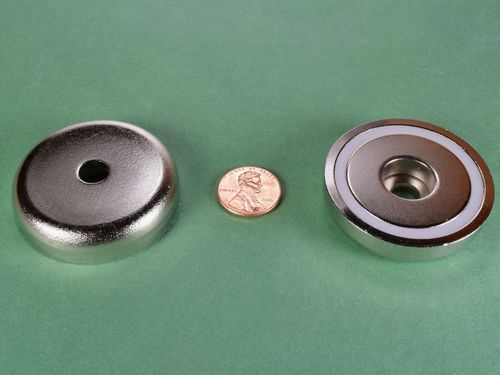

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
