MM-B-60 - Neodymium Counterbored Mounting Magnet - 60mm Dia

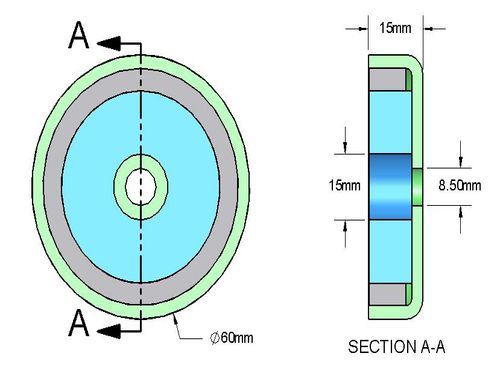

• Dimensions:
      D=60mm (2.36")
      d1=8.5mm (0.33") (Sized for M8 screw)
      d2=16.5mm (0.65") (Straight counterbored hole)
      h=15mm (0.59")
• Material: NdFeB, Grade N38
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 8.50 oz. (241 g)
• Pull Force: 209.4 lbs
• Surface Field: N/A
• Brmax: 12,600 Gauss
• BHmax: 38 MGOe

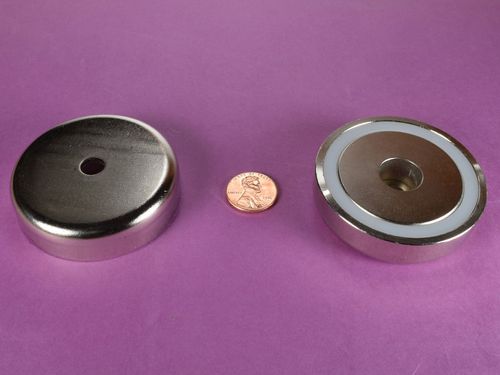

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
