> MM-H-48 - Neodymium Internal Thread Mounting Magnet

MM-H-48 - Neodymium Internal Thread Mounting Magnet - 48mm Dia 11mm Thi

mm-h-48-neodymium-internal-thread-mounting-magnet

mm-h-48-neodymium-internal-thread-mounting-magnet--thumbnail-1

mm-h-48-neodymium-internal-thread-mounting-magnet--thumbnail-2

$17.18

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$17.18	1
$16.80	2	2%
$16.42	3-4	4%
$16.04	5-9	7%
$15.66	10-24	9%
$15.27	25-49	11%
$14.89	50-99	13%
$14.51	100-249	16%
$14.13	250-499	18%
$13.75	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

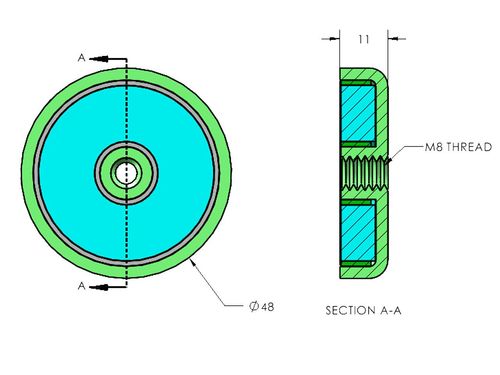

Dimensions:
Diameter = 48mm (1.89mm)
Internal Thread Size = M8
Height = 11mm (0.433")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 4.64 oz. (131.4 g)
Pull Force: 169.3 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

The MM-H style is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
