> MMS-C-X4 - Neodymium Male Stud Mounting Magnet

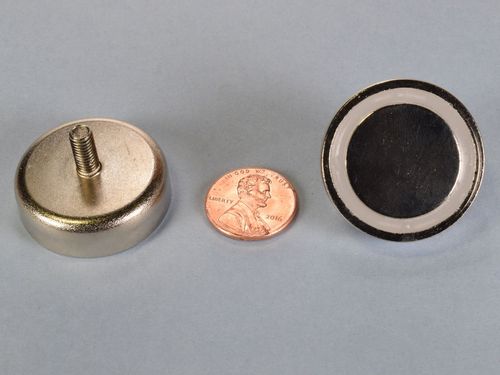

MMS-C-X4 - Neodymium Male Stud Mounting Magnet - 1 1/4" Dia

mms-c-x4-neodymium-male-stud-mounting-magnet

mms-c-x4-neodymium-male-stud-mounting-magnet--thumbnail-1

mms-c-x4-neodymium-male-stud-mounting-magnet--thumbnail-2

$7.54

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$7.54	1
$7.37	2-4	2%
$7.20	5-9	5%
$7.03	10-24	7%
$6.86	25-49	9%
$6.70	50-99	11%
$6.53	100-249	13%
$6.36	250-499	16%
$6.19	500-999	18%
$6.02	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

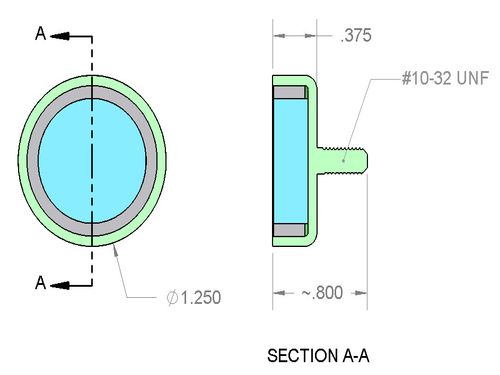

Dimensions:
    Diameter = 1 1/4" (1.25")
    Threaded Male Stud = #10-32 UNF 2A
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.75 oz. (49.60 g)
Pull Force: 61.40 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The MMS-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.
