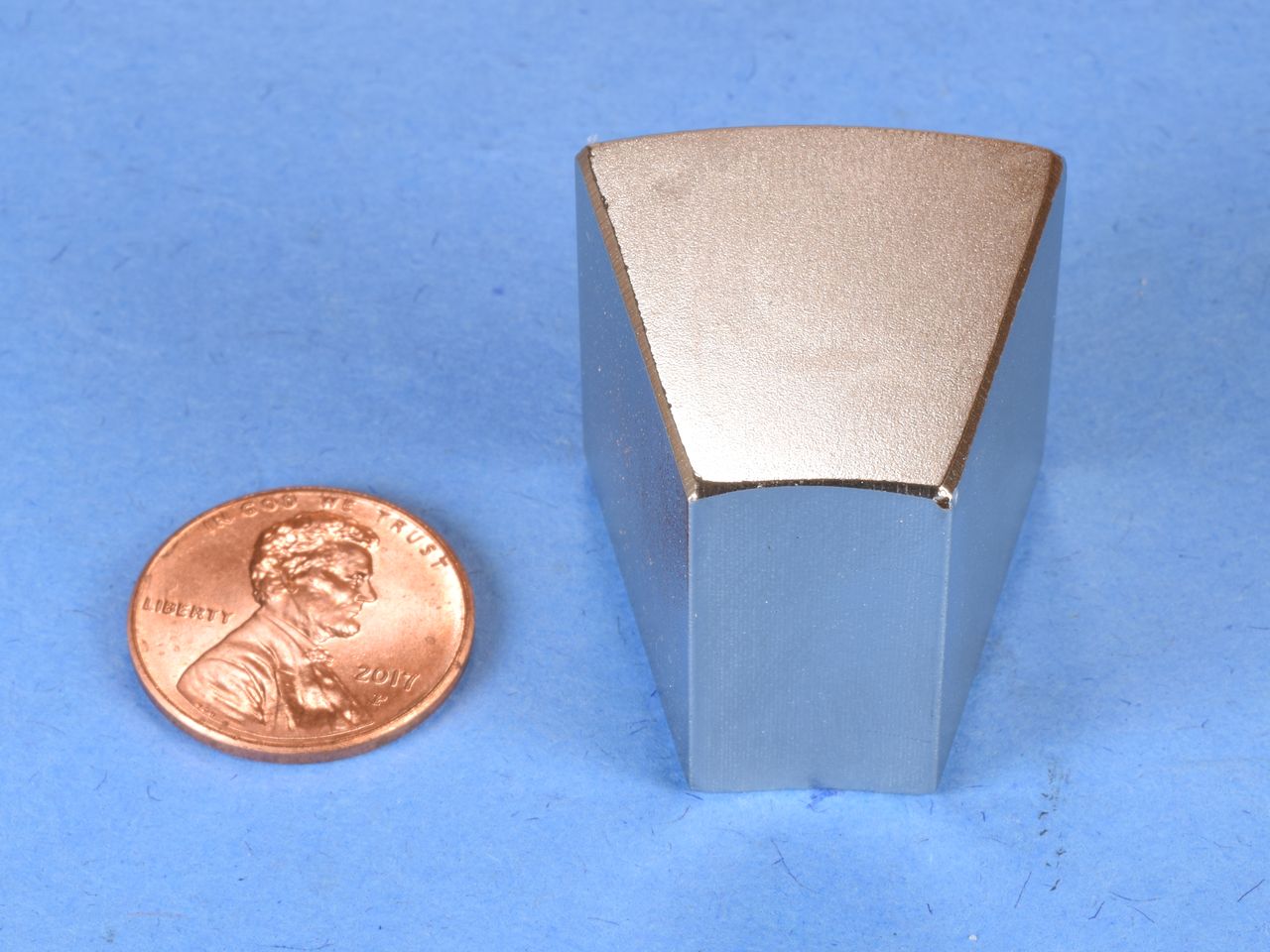

AY0X030-N - Neodymium Arc Segment Magnet

• Dimensions: 2" o.r. x 1" i.r. x 1" x 30°
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Magnetized North on outside face
• Weight: 3.44 oz. (97.5 g)
• Pull Force: 44.50 lbs on outside radius
• Surface Field: 6420 Gauss on outside radius
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

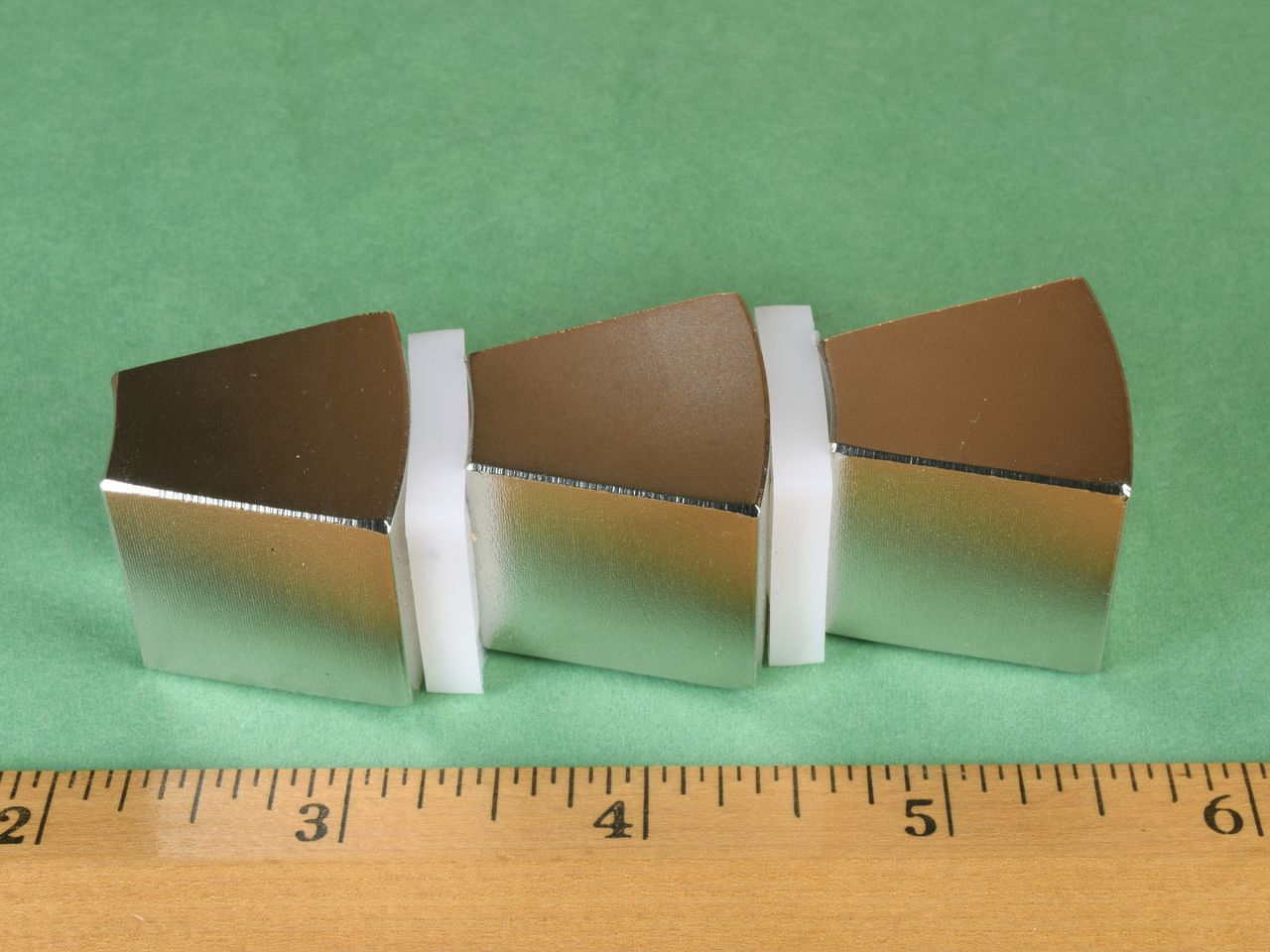

This arc segment is designed so that 12 of them will combine to form a ring of 4" od x 2" id, with alternating poles. To form the ring, you will need 6 AY0X030-N and 6 AY0X030-S. This arc is magnetized through the radius, with the north pole on the outer face. Twelve of these can be forced together and contained in a ring, to form a pseudo radially magnetized ring with the north pole around the outer circumference.

These can also be combined with our AY0X030-C and AY0X030-S to form a circular Halbach array.
