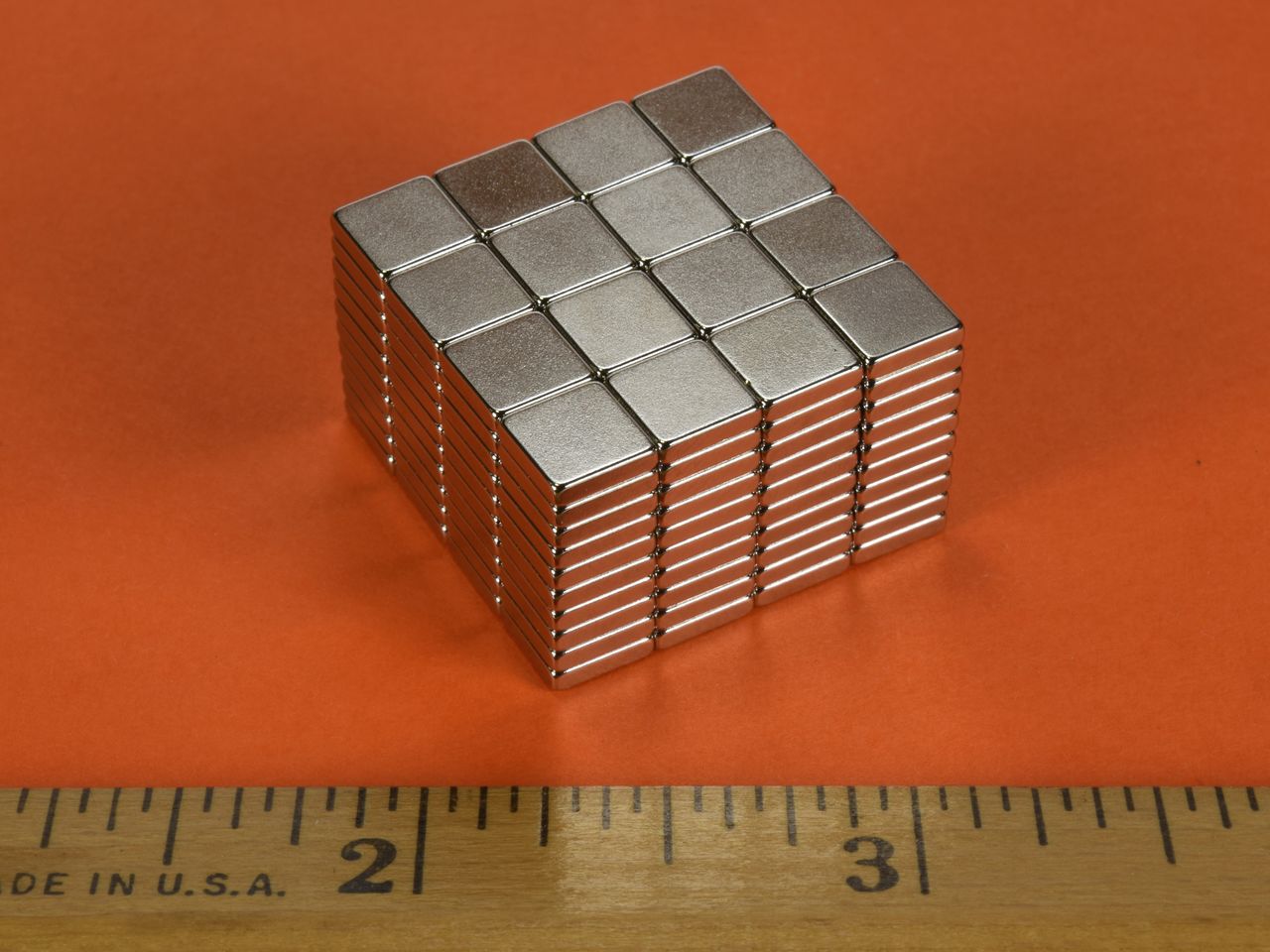

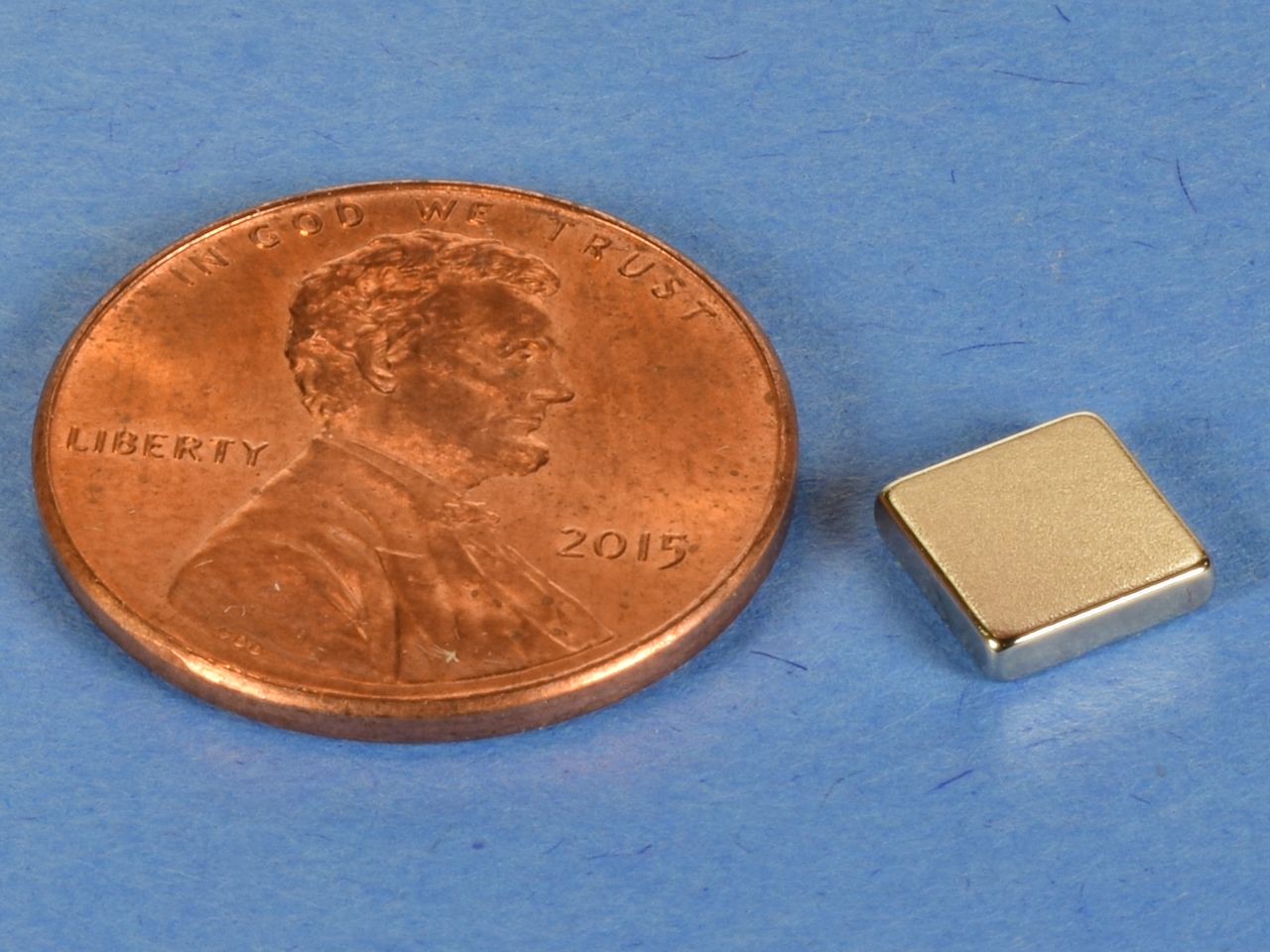

- Dimensions: 1/4" x 1/4" x 1/16" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 0.0169 oz. (0.480 g)
- Pull Force, Case 1: 1.77 lbs
- Pull Force, Case 2: 6.02 lbs
- Surface Field: 3032 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe
