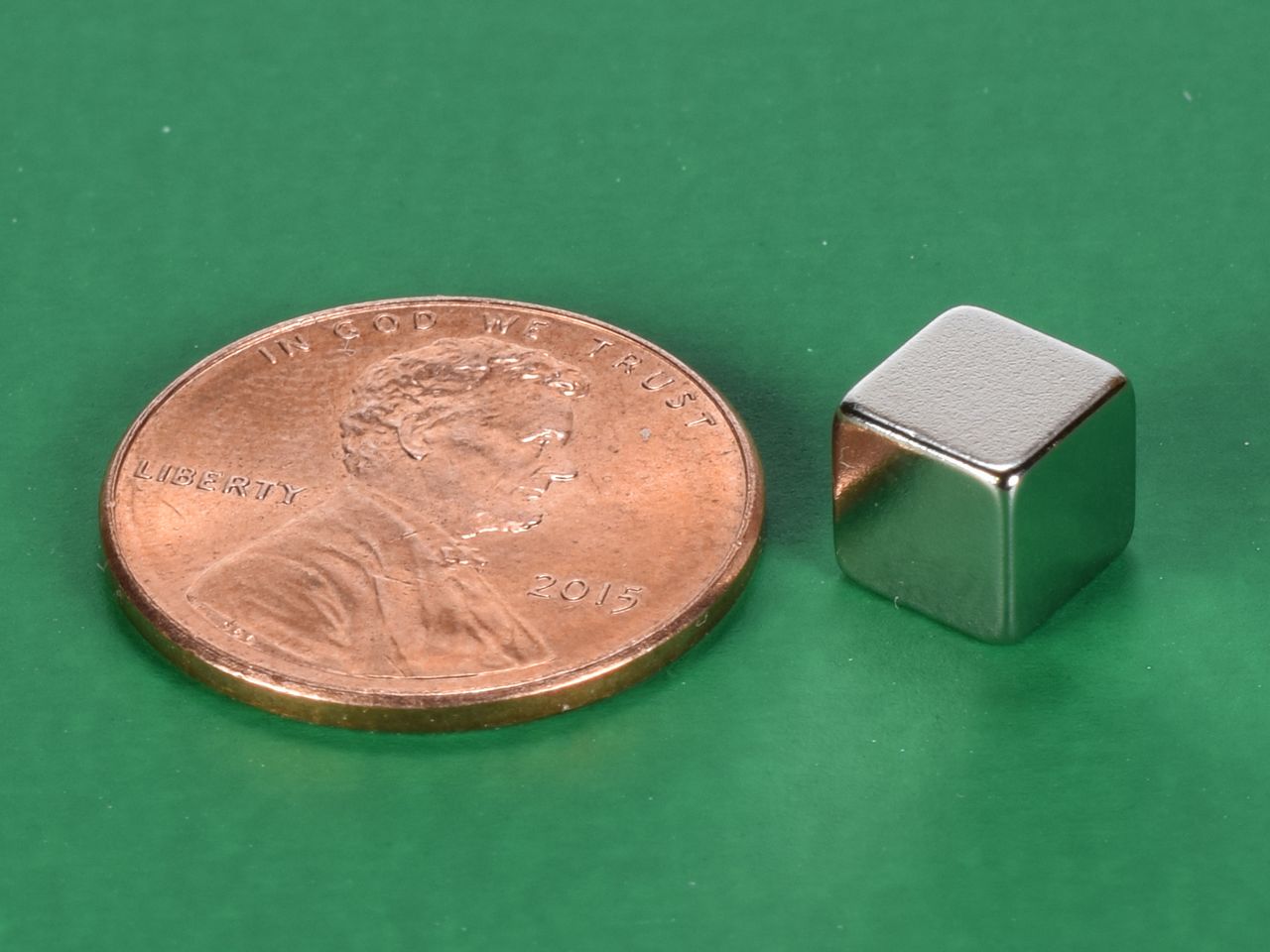

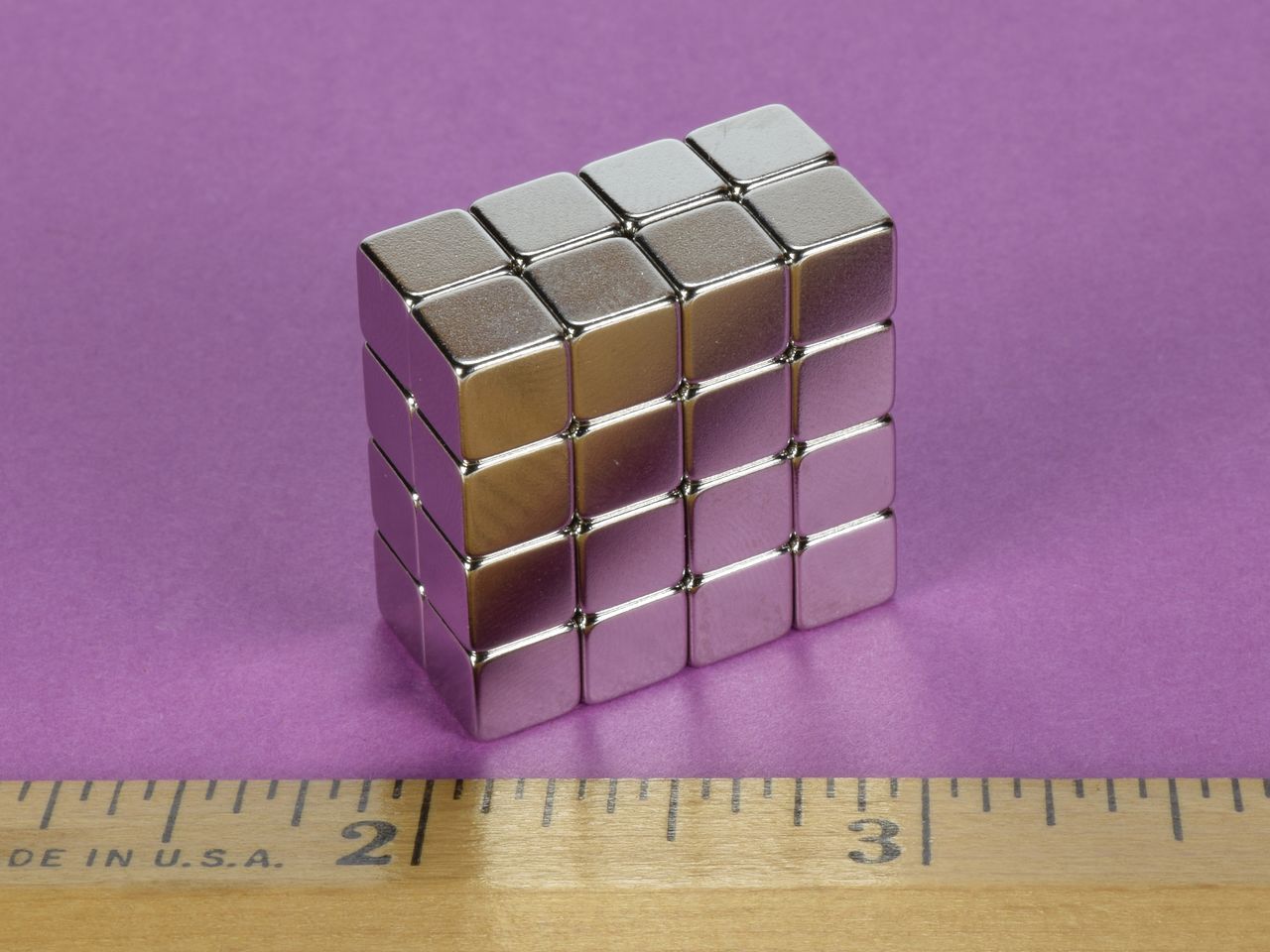

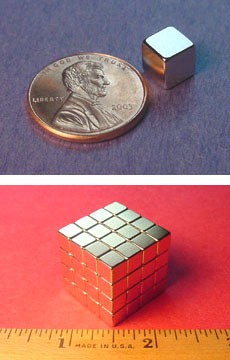

B444 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 1/4" x 1/4" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0677 oz. (1.92 g)
Pull Force, Case 1: 4.25 lbs
Pull Force, Case 2: 5.20 lbs
Surface Field: 5754 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

This small but powerful magnet is a great introduction to the power and strength of tiny neodymium magnets.

This size is also available in grade N52 as part number B444-N52, in grade N42 with a Black Nickel plating as part number B444B and with a 1/16" hole through the center as part number B444-1.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.68

Quantity:

Qty:

Price ea.	Qty
$0.68	1-24
$0.66	25-49
$0.65	50-99
$0.63	100-249
$0.62	250-499
$0.60	500-999
$0.59	1000-2499
$0.57	2500-4999
$0.56	5000-9999
$0.54	10000-24999
For pricing at higher order quantities, please email us!
