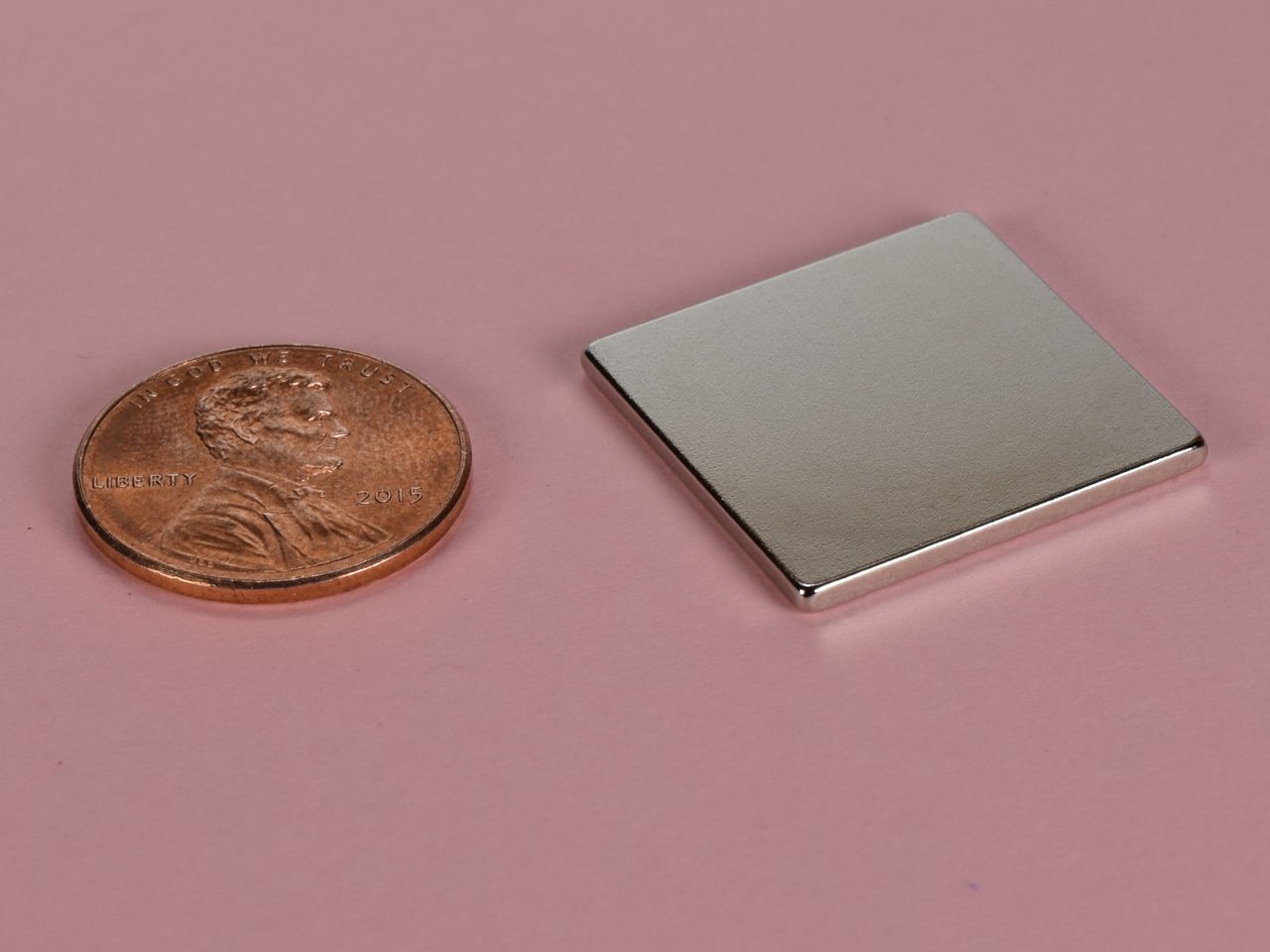

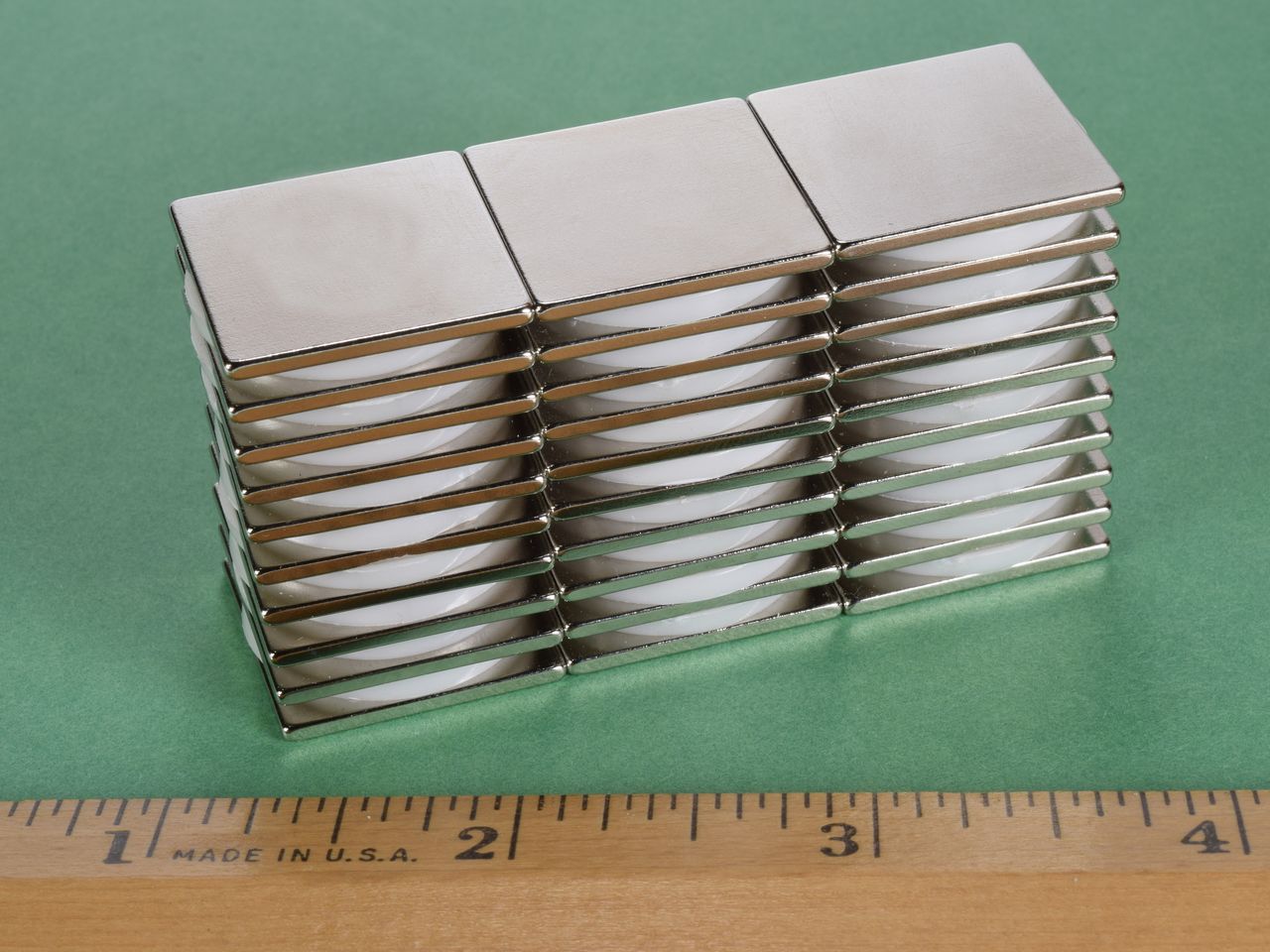

BEE1 - Neodymium Block Magnet

Description
Technical
Downloads

Dimensions: 7/8" x 7/8" x 1/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.207 oz. (5.88 g)
Pull Force, Case 1: 6.67 lbs
Pull Force, Case 2: 51.59 lbs
Surface Field: 842 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These thin blocks are prefect for applications with tight tolerances where the final product can not exceed one inch. Don't let their size fool you, lots of strength in a small form. Great for art projects, crafts, experiments... the possibilities are endless.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $2.03

Quantity:

Qty:

Price ea.	Qty
$2.03	1-9
$1.98	10-24
$1.94	25-49
$1.89	50-99
$1.85	100-249
$1.80	250-499
$1.76	500-999
$1.71	1000-2499
$1.67	2500-4999
$1.62	5000-9999
For pricing at higher order quantities, please email us!
