BX8X8X8-N52 - Neodymium Block Magnet

Description
Technical
Downloads
Video

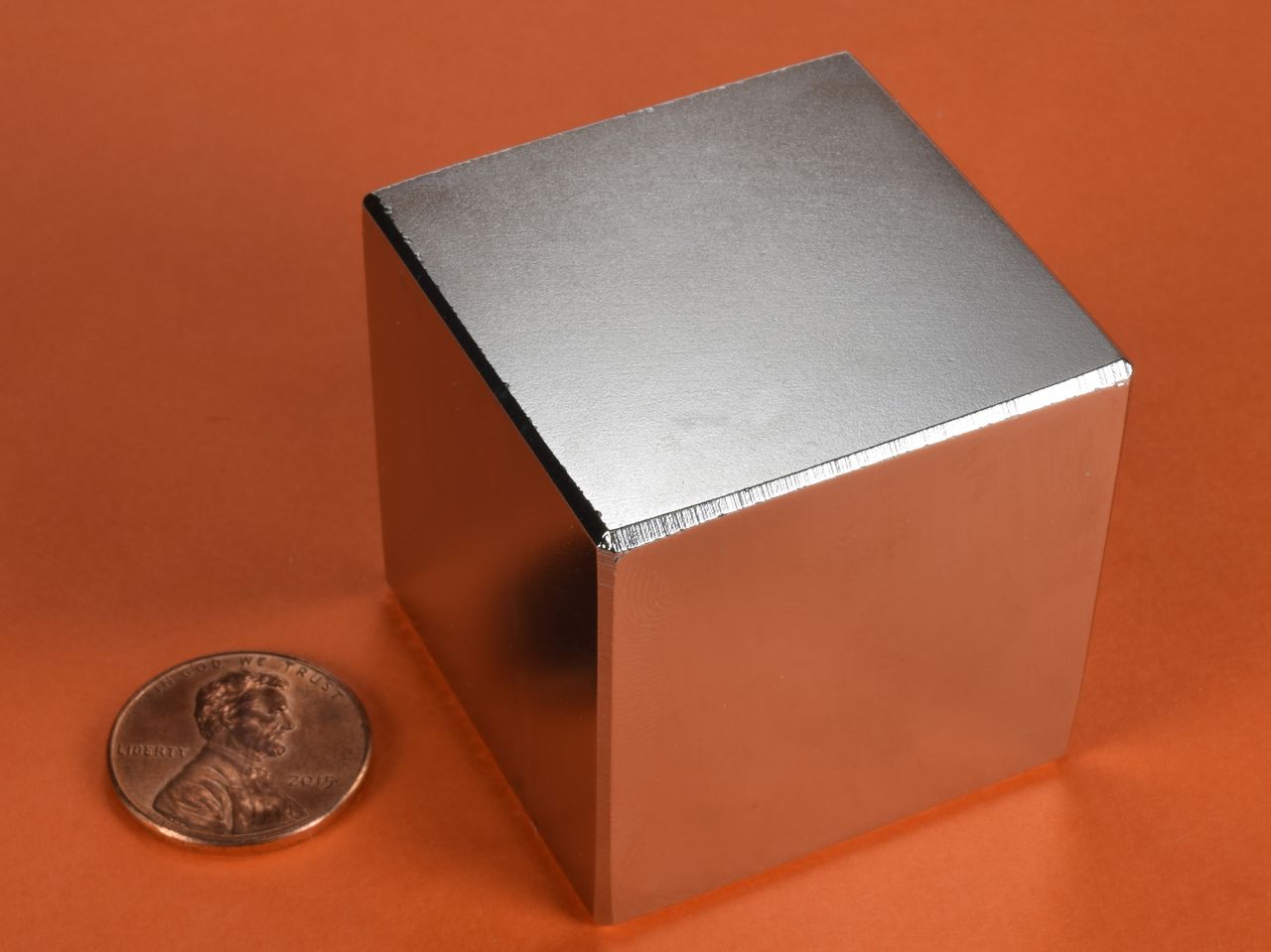

Dimensions: 1 1/2" x 1 1/2" x 1 1/2" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 14.6 oz. (415 g)
Pull Force, Case 1: 238.2 lbs
Pull Force, Case 2: 238.2 lbs
Surface Field: 6451 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

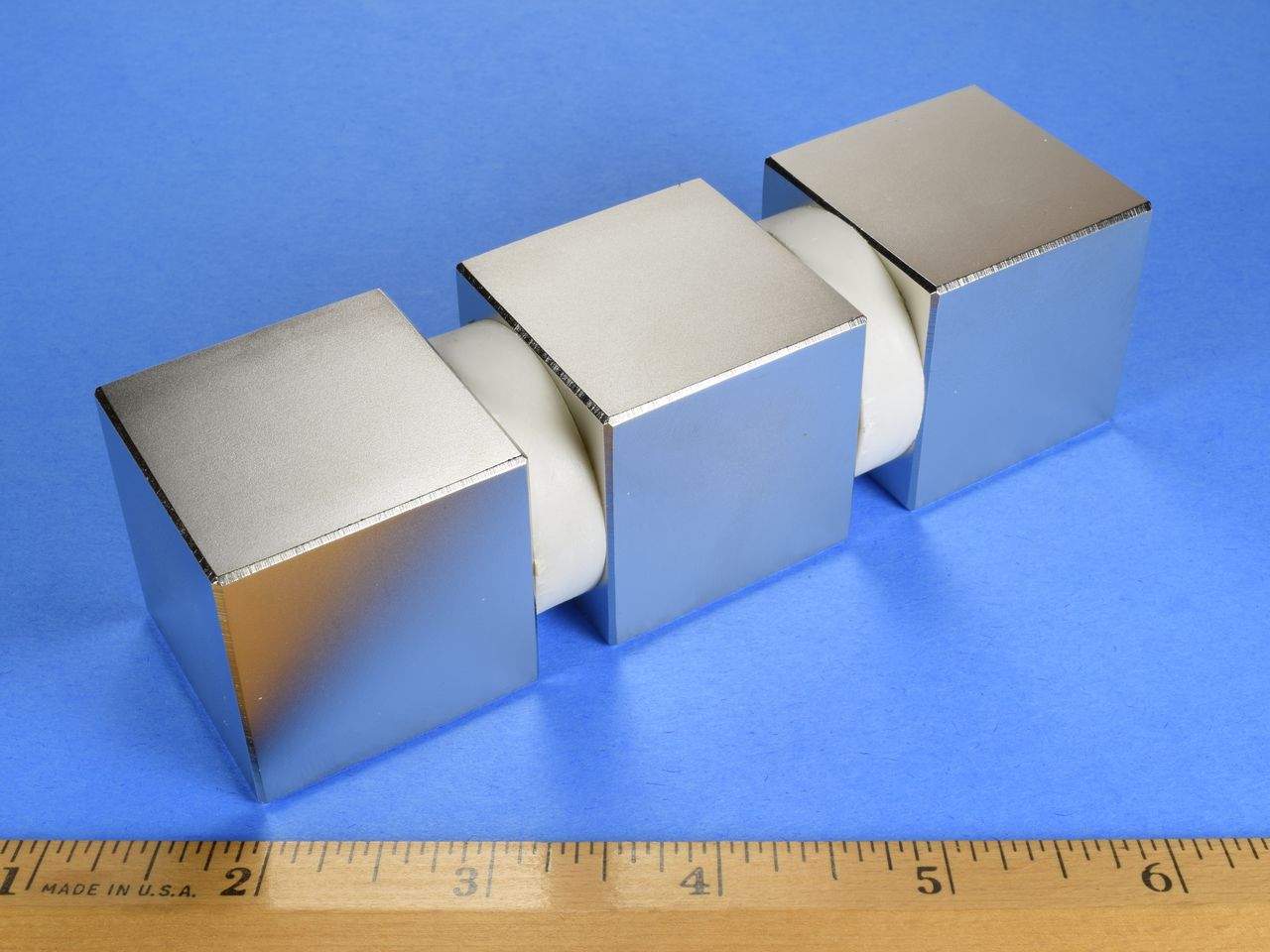

These 1 1/2" cubes are incredibly powerful and must be handled with care to avoid personal injury and damage to the magnets. Two of these cubes stuck together are impossible to separate by hand. Please use extreme caution!

This size is also available in grade N42 as part number BX8X8X8.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $112.68

Quantity:

Qty:

Price ea.	Qty
$112.68	1
$110.18	2
$107.67	3-4
$105.17	5-6
$102.66	7-9
$100.16	10-14
$97.65	15-19
$95.15	20-24
$92.64	25-49
$90.14	50-99
For pricing at higher order quantities, please email us!
