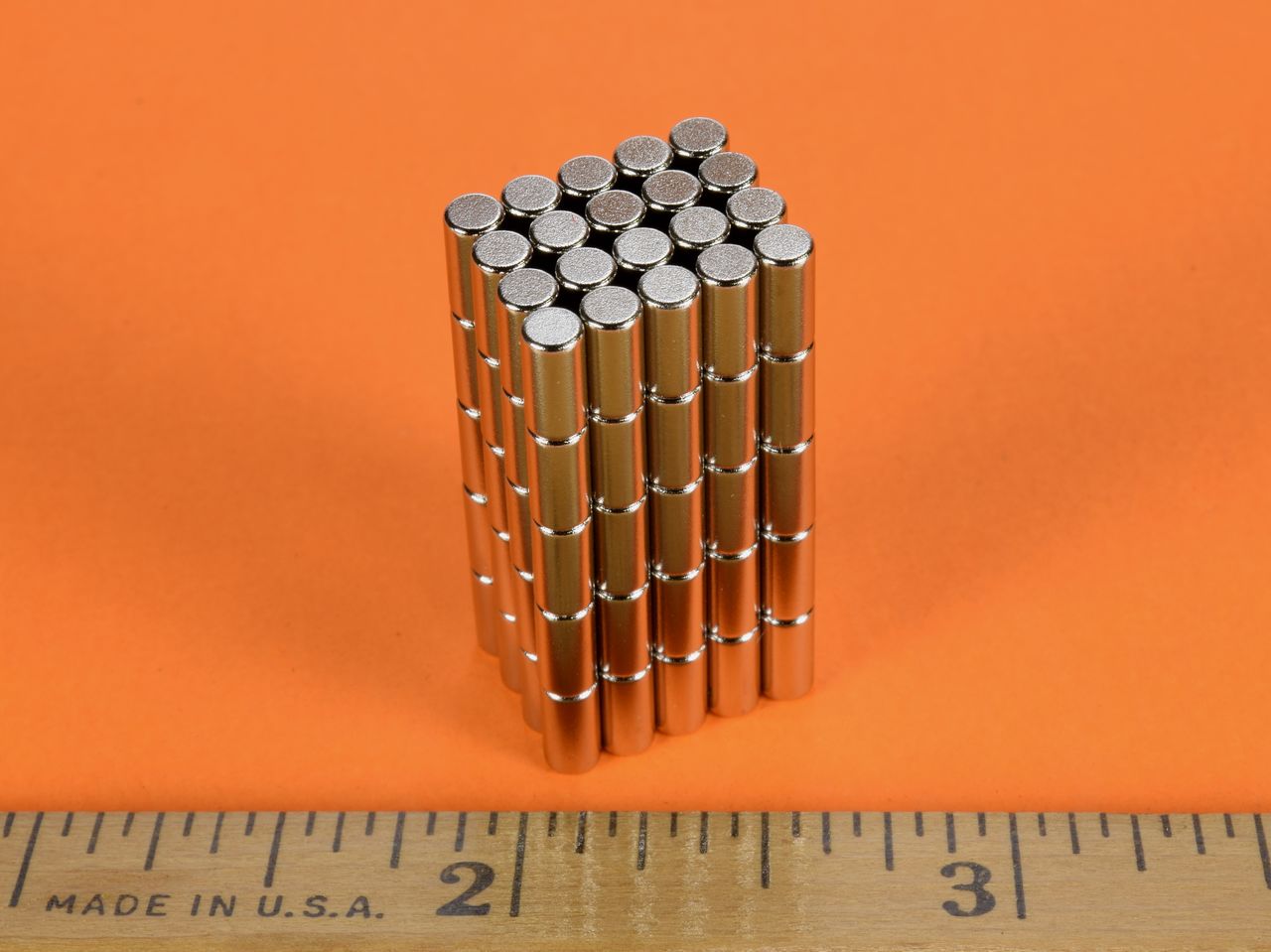

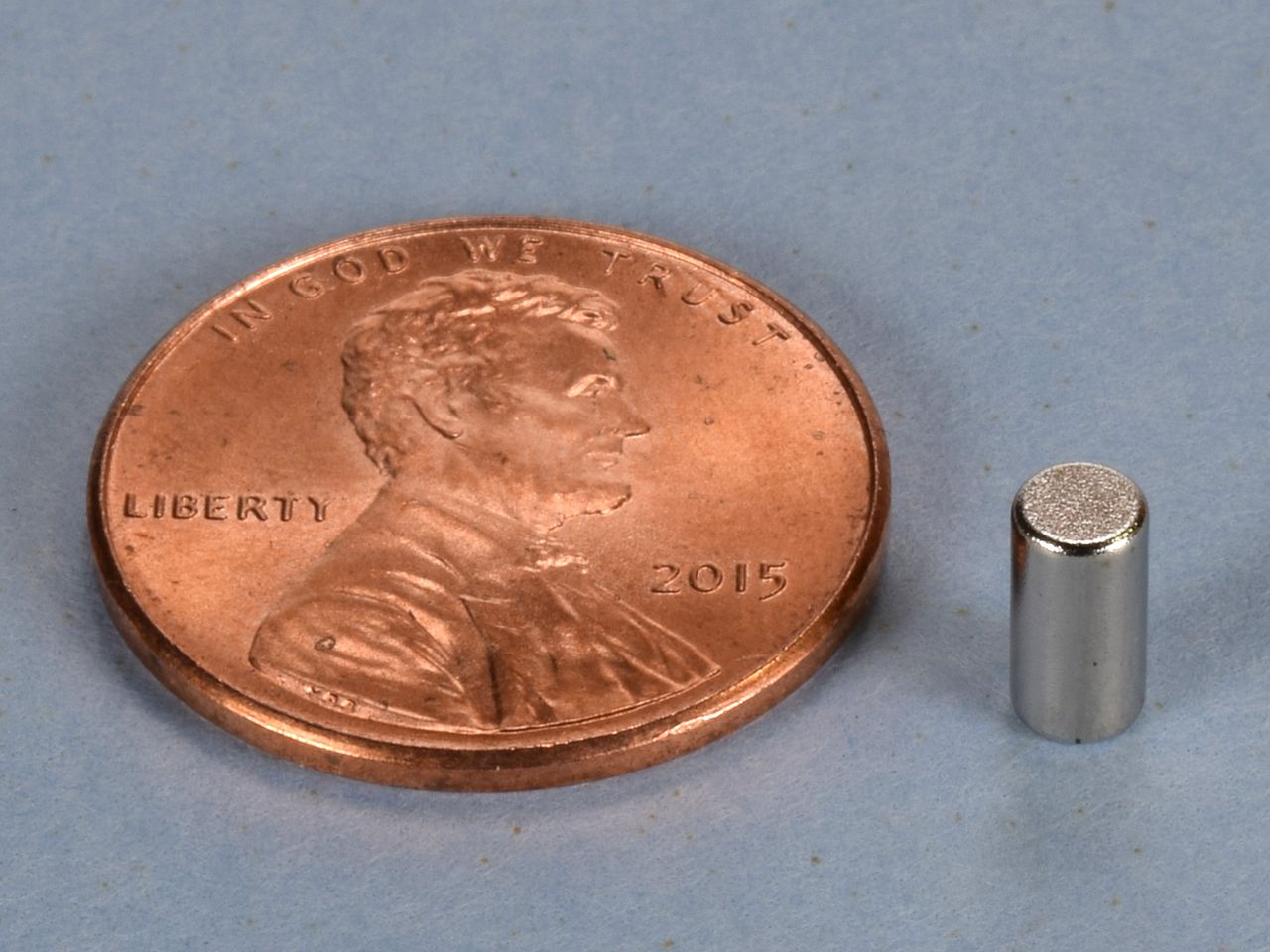

D24 - Neodymium Cylinder Magnet - 1/8" Dia x 1/4" Thi

• Dimensions: 1/8" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0133 oz. (0.377 g)
• Pull Force, Case 1: 0.85 lbs
• Pull Force, Case 2: 0.87 lbs
• Surface Field: 6403 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These small cylinders make great fridge magnets, as they are easy to handle and can hold paper and pictures in place.

This size is also available in grade N52 as part number D24-N52 and in diametrically magnetized grade N42 as part number D24DIA.
