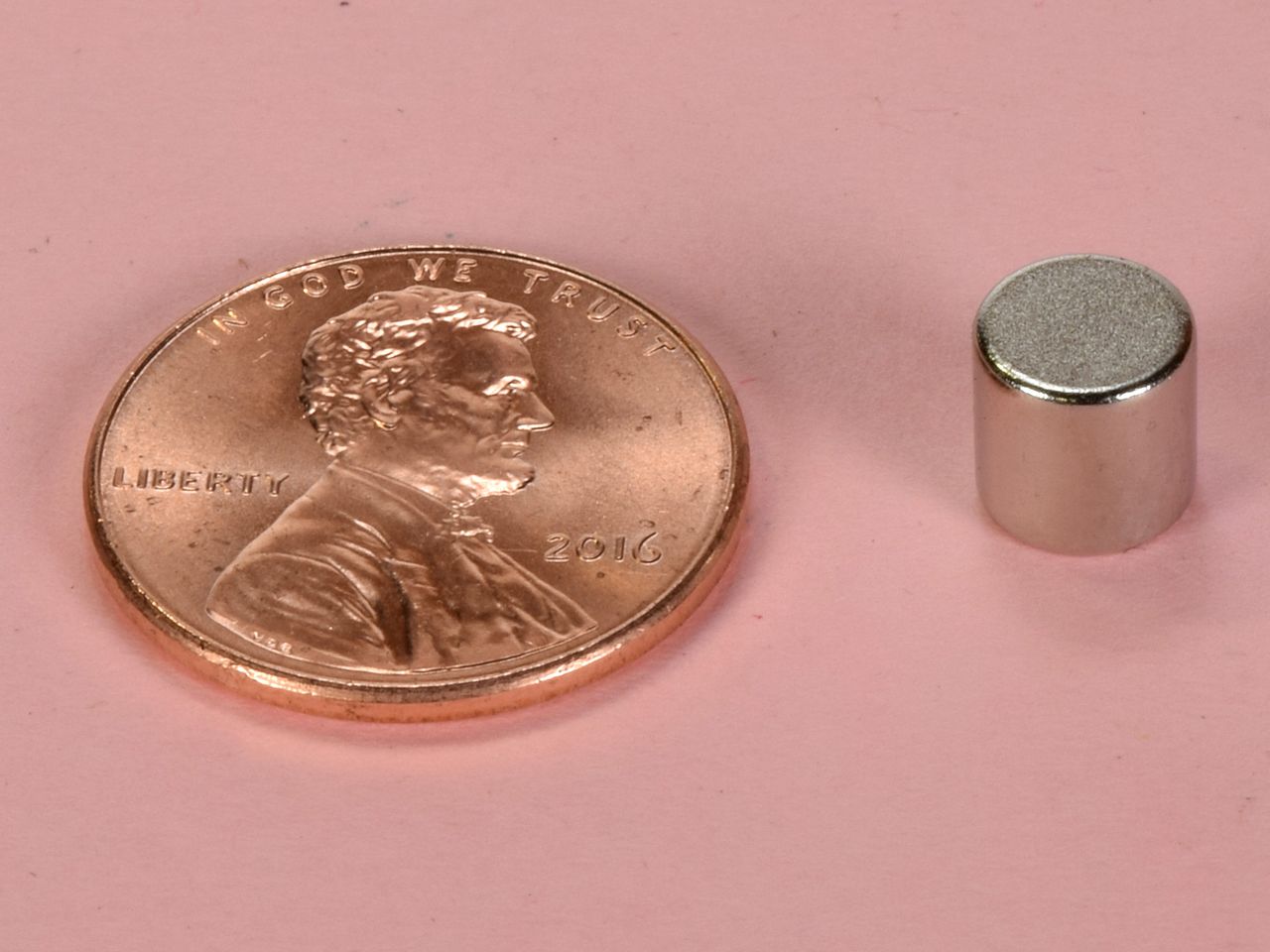

D44SH - Neodymium High Temp Cylinder Magnet - 1/4" Dia x 1/4" Thi

• Dimensions: 1/4" dia. x 1/4" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42SH
• Plating/Coating: Ni-Cu-Ni (nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0532 oz. (1.51 g)
• Pull Force, Case 1: 3.35 lbs
• Pull Force, Case 2: 3.85 lbs
• Surface Field: 5903 Gauss
• Max Operating Temp: 302ºF (150ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These little 1/4" magnets are very strong and very handy. The D44SH cylinders are made with grade N42SH (SH = Super High Temperature) material. The SH material means that the magnets can be heated to 302° F (150° C) without any permanent loss of magnetic strength, unlike standard neodymium magnets that begin to lose strength at 176° F (80° C). Suitable for many high temperature applications.

This size is also available in grade N52 (standard temp) as part number D44-N52 and in grade N42 (standard temp) as part number D44.
