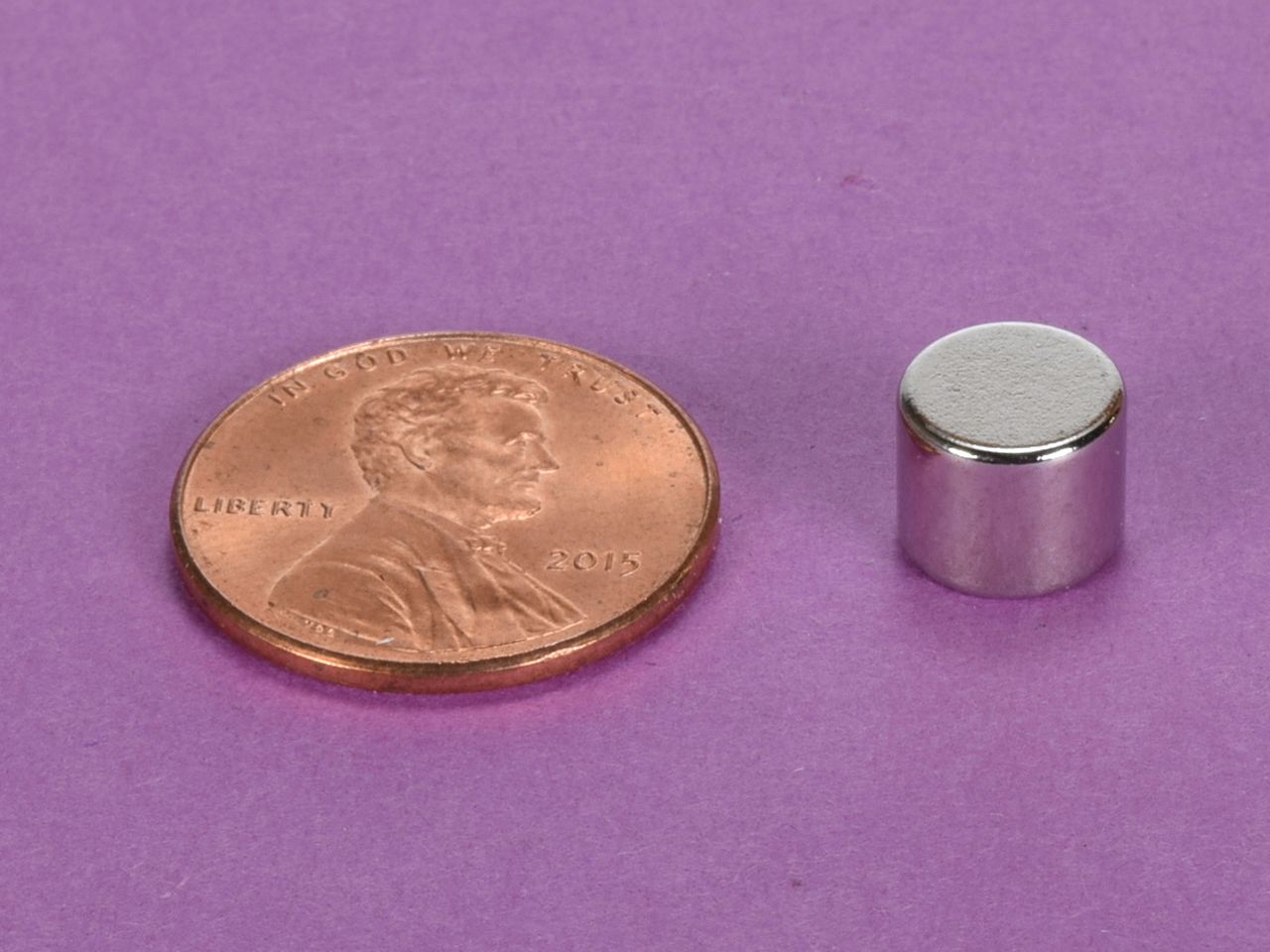

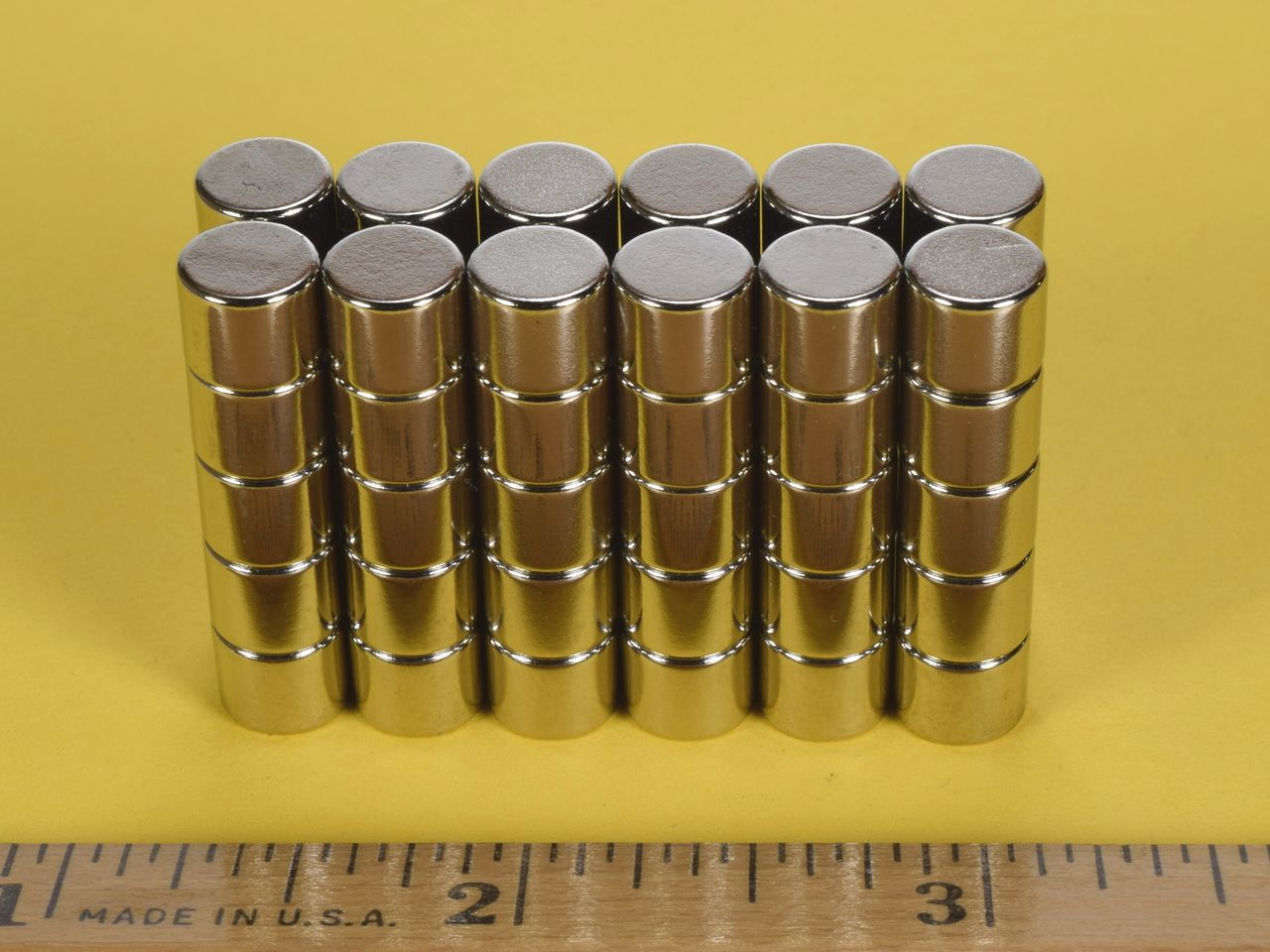

- Dimensions: 5/16" dia. x 1/4" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0831 oz. (2.36 g)
- Pull Force, Case 1: 5.11 lbs
- Pull Force, Case 2: 6.48 lbs
- Surface Field: 5597 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
