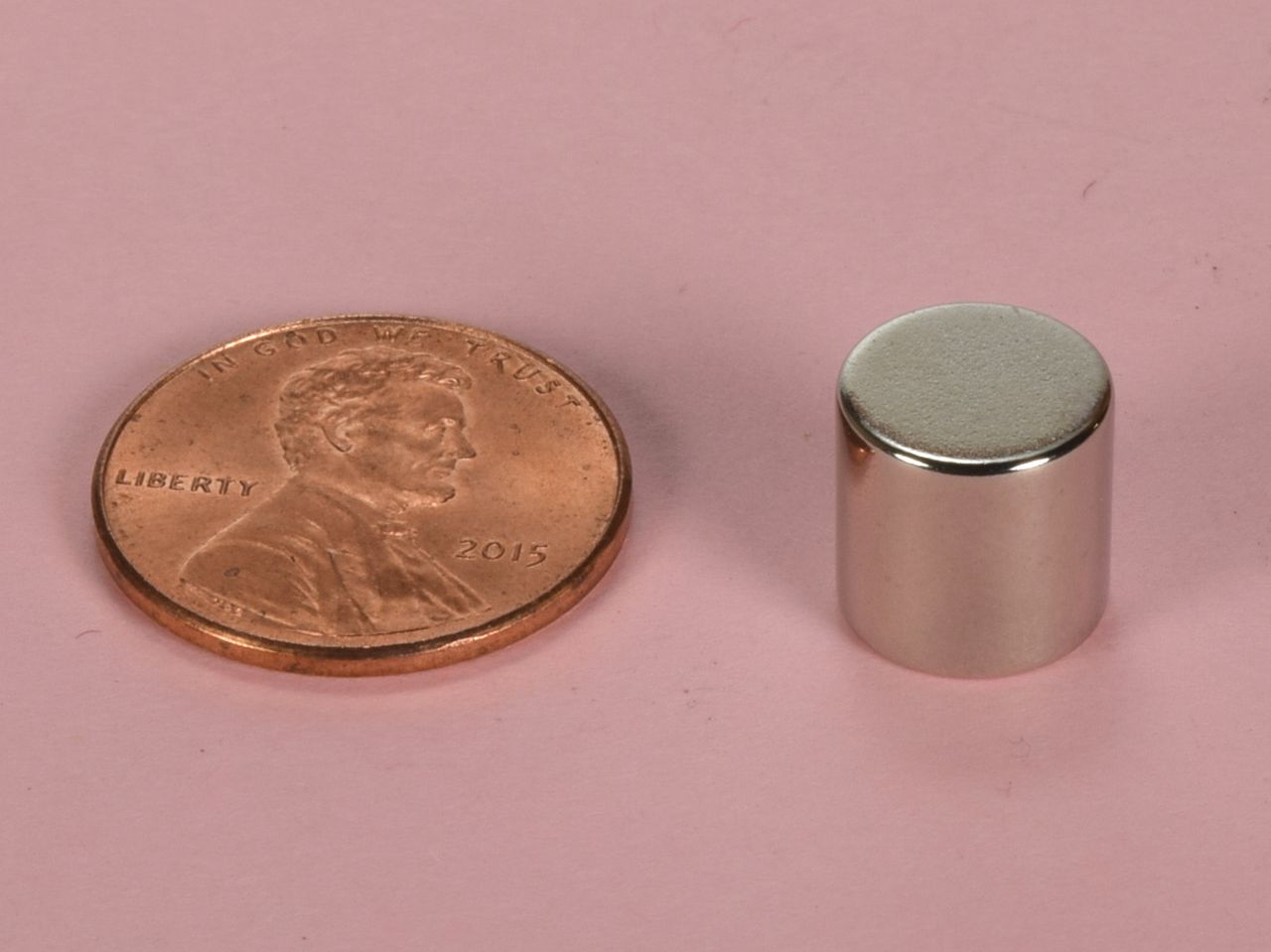

D66 - Neodymium Cylinder Magnet

d66-neodymium-cylinder-magnet--thumbnail-2

$1.46

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.46	1-9
$1.43	10-24	2%
$1.40	25-49	4%
$1.36	50-99	7%
$1.33	100-249	9%
$1.30	250-499	11%
$1.27	500-999	13%
$1.23	1000-2499	16%
$1.20	2500-4999	18%
$1.17	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/8" dia. x 3/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.180 oz. (5.09 g)
Pull Force, Case 1: 7.96 lbs
Pull Force, Case 2: 9.10 lbs
Surface Field: 5903 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Here we offer these great sized neodymium rare earth cylinder (aka "rod") magnets. The D66 is a great magnet to have around the house or shop. The 3/8" size makes it very powerful, yet it is still small enough that it is not overpowering. They are easy to handle and are great for hanging small and medium sized hand tools from metal lockers, toolboxes or just about anywhere. Great for science experiments and demonstrations.

This size is also available in grade N52 as part number D66-N52 and in High Temp grade N42SH as part number D66SH.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
